Assembly of PV panels to channels
CC50H35...MC
Material
S350GD steel in:
Magnelis®, MagiZinc®, PosMAC coating
Additional information

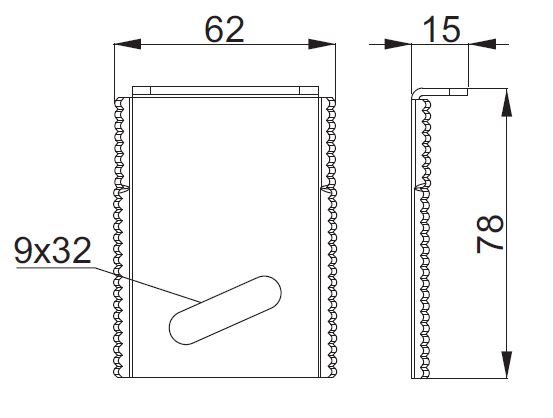

- an oblique opening 9x32 allows the installation of panels with
a height of the frame in the range of 30-40 mm
- quick assembly thanks to the use of a screw with a rhombus nut,
which locks in the CC50H35MC channel
- thanks to the side bends, the clamp ensures continuity between
the panel frame and the system
For the assembly use 4 x SGKFM10x20PV Screw Sets
