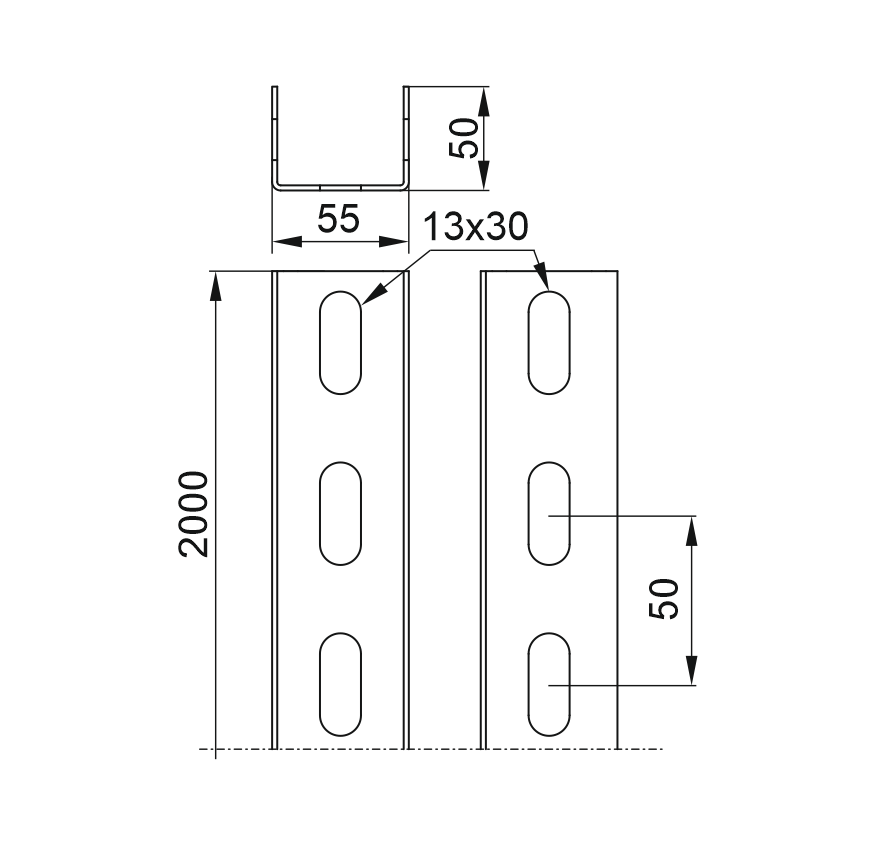

CC55H50... Channel

2.0
Information

For hanging lamps and as a structural element for mounting ladders and cable trays. As a support element for wall brackets: WWSR..., WW..., WWS/WWSO..., WU/WUO..., WWSN..., WSZN... (for th. ≥ 2 mm), WPL..., WPT..., WMCN..., WMC/WMCO…

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

– for self-mounting vertical ladders

– use SGKM10x16 or SGM10x16 bolts to join the channel with the connector

– option E for sections up to 3 m

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Catalogue number Length L (mm) Weight 1 pc. (kg) Quantity (pcs.) 3D file
CC55H50/03
Cable Management Solutions – BAKS
612103
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
0.60
Cable Management Solutions – BAKS
20
Plik *.std Add
CC55H50/04
Cable Management Solutions – BAKS
612104
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
0.81
Cable Management Solutions – BAKS
20
Plik *.std Add
CC55H50/05
Cable Management Solutions – BAKS
612105
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
1.01
Cable Management Solutions – BAKS
20
Plik *.std Add
CC55H50/1
Cable Management Solutions – BAKS
612110
Cable Management Solutions – BAKS
1 000 mm
Cable Management Solutions – BAKS
2.02
Cable Management Solutions – BAKS
8
Plik *.std Add
CC55H50/2
Cable Management Solutions – BAKS
612120
Cable Management Solutions – BAKS
2 000 mm
Cable Management Solutions – BAKS
4.05
Cable Management Solutions – BAKS
8
Plik *.std Add
CC55H50/3
Cable Management Solutions – BAKS
612130
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
6.09
Cable Management Solutions – BAKS
4
Plik *.std Add
