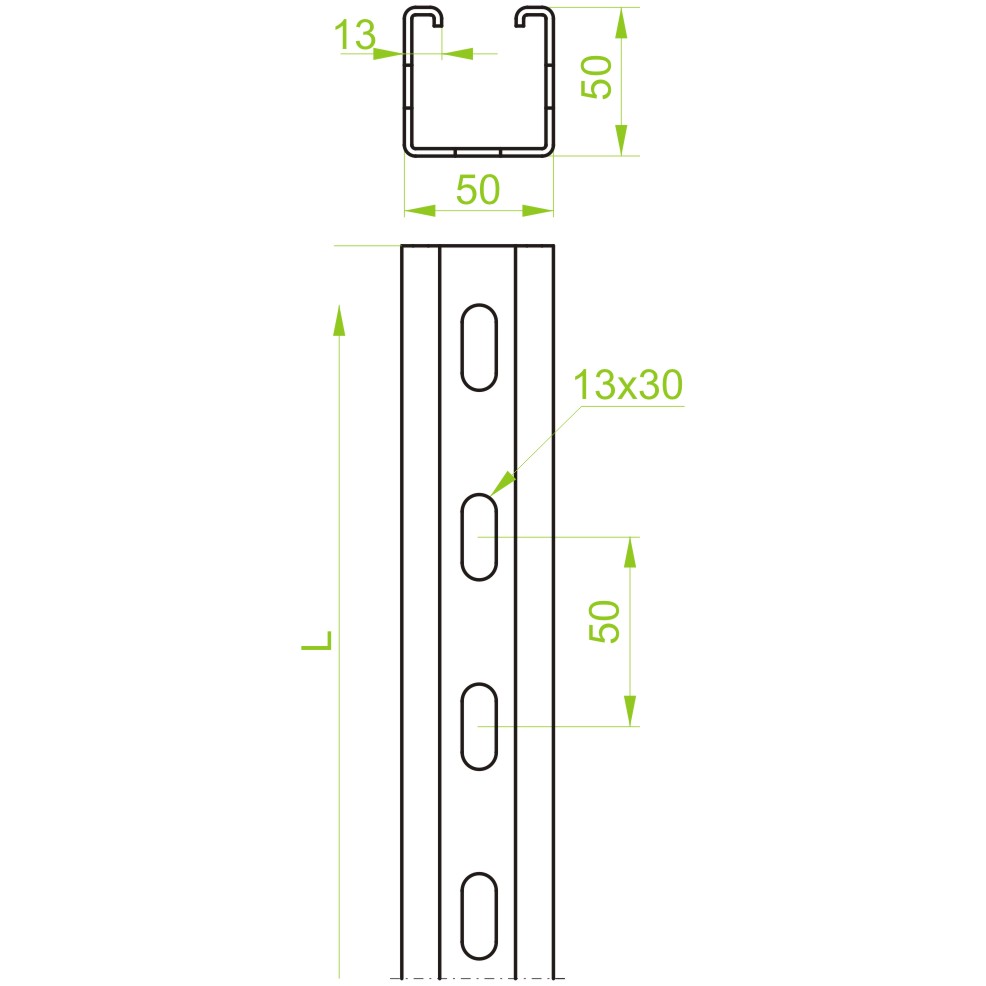

CMC50H50 Support Channel

2.0
Information

Forming of load-bearing structures. As a support element for wall brackets: WWSR..., WW..., WWS/WWSO..., WU/WUO..., WWSN..., WSZN... (for th. ≥ 2 mm), WPL..., WPT..., WMCN..., WMC/WMCO..., WWCN..., WWC..., WMCT..., WWCT/WWCTO..., WWV...

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

L - painting in standard RAL colour

Additional information

– possibility to order any sections up to 6 m

– use SGKM10x16 or SGM10x16 bolts to join the channel with the connector

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Length L (mm) Weight 1 pc. (kg) Catalogue number Quantity (pcs.) 3D file
CMC50H50/3
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
8.04
Cable Management Solutions – BAKS
616830
Cable Management Solutions – BAKS
4
Plik *.std Add
CMC50H50/6
Cable Management Solutions – BAKS
6 000 mm
Cable Management Solutions – BAKS
16.08
Cable Management Solutions – BAKS
616860
Cable Management Solutions – BAKS
4
Plik *.std Add
