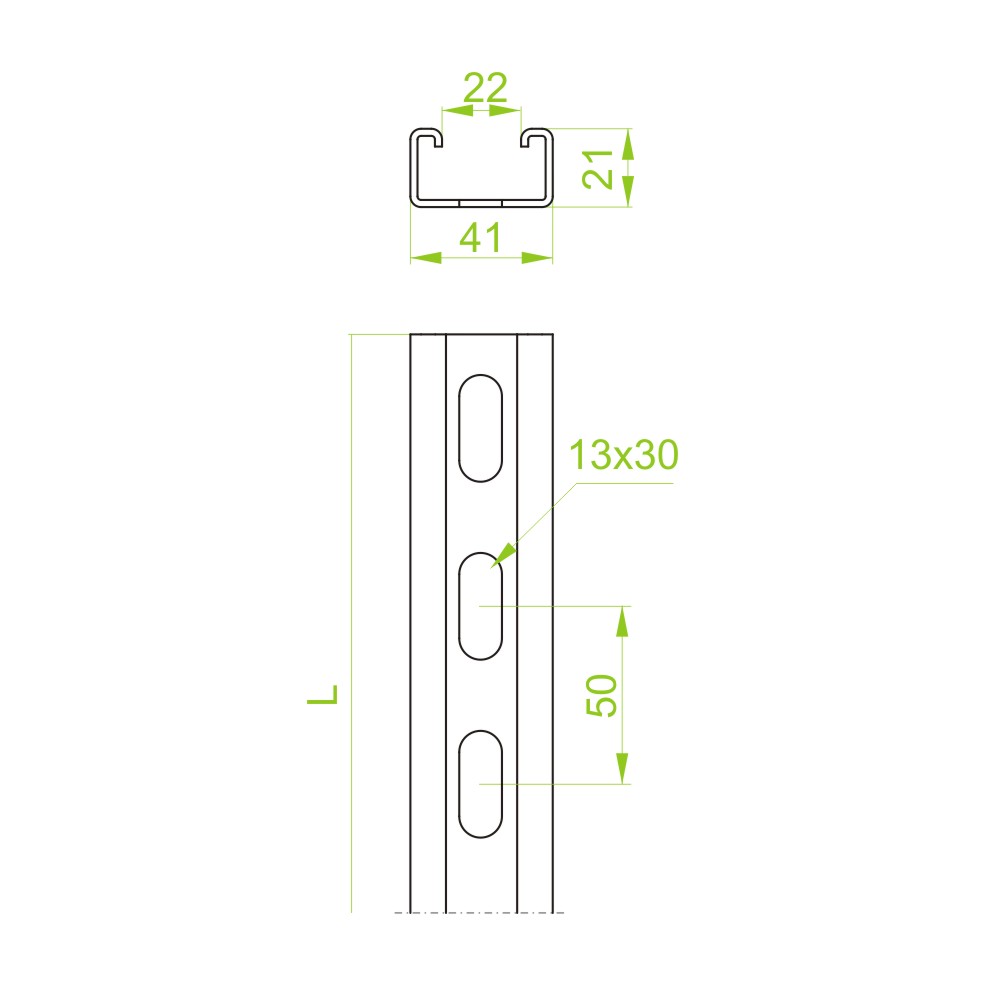

CMP41H21...F Support Channel

1.5 Cable Management Solutions – BAKS
Information

For hanging lamps and as a structural element for mounting ladders and cable trays. As a support element for wall brackets: WWSR..., WW..., WWS/WWSO..., WU/WUO..., WWSN..., WS..., WZS..., WSZN... (for th. ≥ 2 mm), WTL..., WWT..., WPL..., WPT...

Material

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

Available finishes:

L - painting in standard RAL colour

Additional information

– use SGKFM10x16 bolts to join the channel with the connector

– for order of more than 200 pcs., can be made in other lengths and thicknesses

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Catalogue number Length L (mm) Weight 1 pc. (kg) Quantity (pcs.) 3D file
CMP41H21/02F
Cable Management Solutions – BAKS
620112
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
0.23
Cable Management Solutions – BAKS
50
Plik *.std Add
CMP41H21/03F
Cable Management Solutions – BAKS
620113
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
0.35
Cable Management Solutions – BAKS
50
Plik *.std Add
CMP41H21/04F
Cable Management Solutions – BAKS
620114
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
0.47
Cable Management Solutions – BAKS
30
Plik *.std Add
CMP41H21/05F
Cable Management Solutions – BAKS
620115
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
0.59
Cable Management Solutions – BAKS
30
Plik *.std Add
CMP41H21/06F
Cable Management Solutions – BAKS
620106
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
0.70
Cable Management Solutions – BAKS
30
Plik *.std Add
CMP41H21/07F
Cable Management Solutions – BAKS
620107
Cable Management Solutions – BAKS
700 mm
Cable Management Solutions – BAKS
0.82
Cable Management Solutions – BAKS
8
Plik *.std Add
CMP41H21/08F
Cable Management Solutions – BAKS
620108
Cable Management Solutions – BAKS
800 mm
Cable Management Solutions – BAKS
0.94
Cable Management Solutions – BAKS
8
Plik *.std Add
CMP41H21/09F
Cable Management Solutions – BAKS
620109
Cable Management Solutions – BAKS
900 mm
Cable Management Solutions – BAKS
1.06
Cable Management Solutions – BAKS
8
Plik *.std Add
CMP41H21/1F
Cable Management Solutions – BAKS
620111
Cable Management Solutions – BAKS
1 000 mm
Cable Management Solutions – BAKS
1.17
Cable Management Solutions – BAKS
8
Plik *.std Add
CMP41H21/2F
Cable Management Solutions – BAKS
620122
Cable Management Solutions – BAKS
2 000 mm
Cable Management Solutions – BAKS
2.34
Cable Management Solutions – BAKS
8
Plik *.std Add
CMP41H21/3F
Cable Management Solutions – BAKS
620132
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
3.51
Cable Management Solutions – BAKS
8
Plik *.std Add
CMP41H21/6F
Cable Management Solutions – BAKS
620160
Cable Management Solutions – BAKS
6 000 mm
Cable Management Solutions – BAKS
7.02
Cable Management Solutions – BAKS
8
Plik *.std Add
