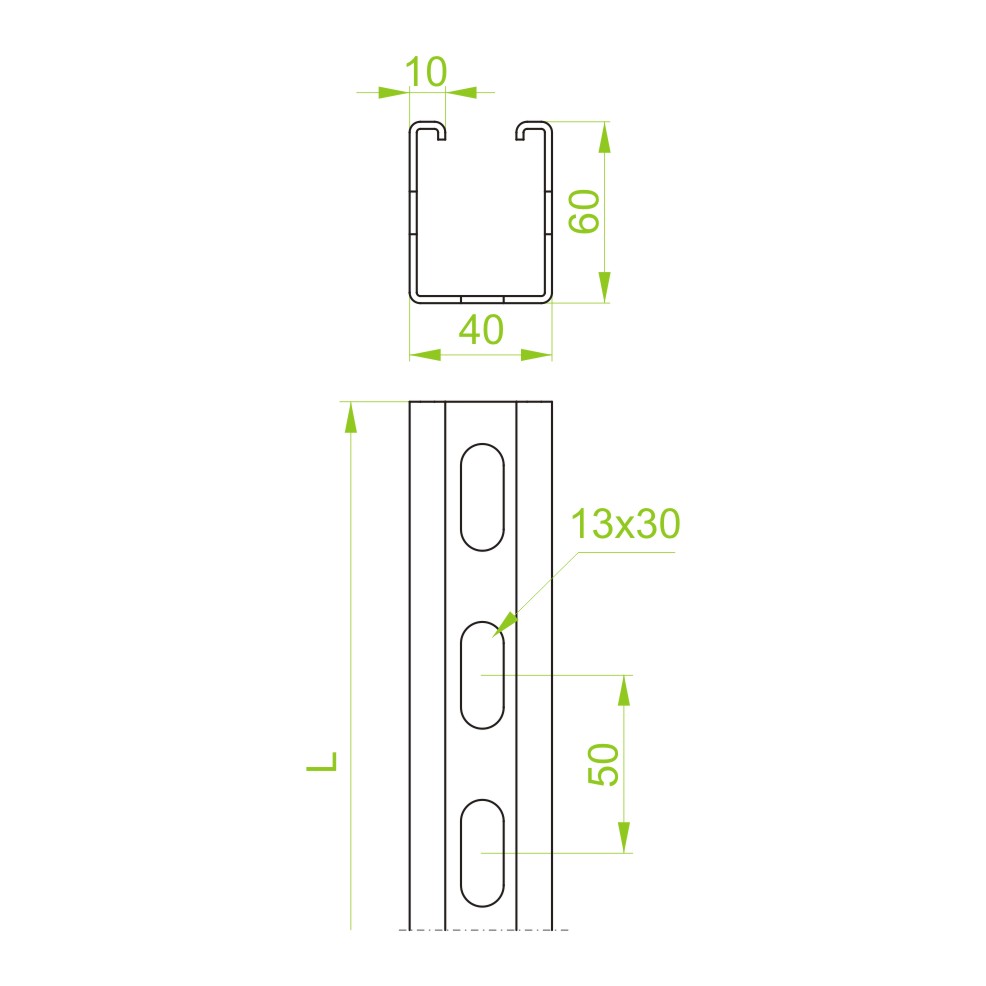

CMT40H60 Support Channel

3.0
Information

For hanging lamps and as a structural element for mounting ladders and cable trays. As a support element for wall brackets: WWSR..., WW..., WWS/WWSO..., WU/WUO..., WWSN..., WS..., WZS..., WSZN..., WTL..., WWT..., WPL..., WPT..., WMCN..., WMC/WMCO…

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

L - painting in standard RAL colour

Additional information

– possibility to order any sections up to 6 m

– use SGKM10x20 or SGM10x20 bolts to join the channel with the connector

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Catalogue number Length L (mm) Weight 1 pc. (kg) Quantity (pcs.) 3D file
CMT40H60/3
Cable Management Solutions – BAKS
616633
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
10.75
Cable Management Solutions – BAKS
4
Plik *.std Add
CMT40H60/6
Cable Management Solutions – BAKS
616663
Cable Management Solutions – BAKS
6 000 mm
Cable Management Solutions – BAKS
21.50
Cable Management Solutions – BAKS
2
Plik *.std Add
