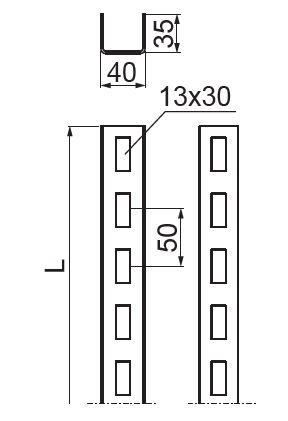

CP40H35... Channel

1.5 Cable Management Solutions – BAKS
Information

For hanging lamps and as a structural element for mounting ladders and cable trays. As a support element for wall brackets: WWSR..., WW..., WWS/WWSO..., WU/WUO..., WWSN..., WS..., WZS..., WSZN... (for th. ≥ 2 mm), WTL..., WWT..., WPL..., WPT...

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

– on large order possibility to make any length up to 6 m

– use SGKM10x16 or SGM10x16 bolts to join the channel with the connector

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Catalogue number Length L (mm) Weight 1 pc. (kg) Quantity (pcs.)
CP40H35/2
Cable Management Solutions – BAKS
665314
Cable Management Solutions – BAKS
2 000 mm
Cable Management Solutions – BAKS
1.94
Cable Management Solutions – BAKS
8
Add
CP40H35/3
Cable Management Solutions – BAKS
665315
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
2.90
Cable Management Solutions – BAKS
8
Add
