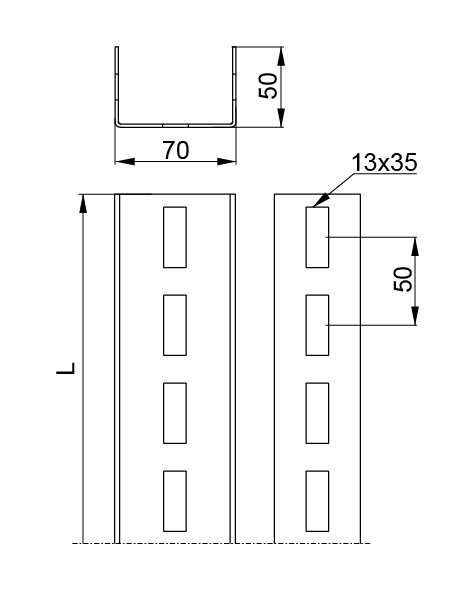

Load-bearing structure element - vertical support
posts for free-standing structures
S350GD steel in:
Magnelis®, MagiZinc®, PosMAC coating
- dense perforation enables the levelling of unevenness created
during the assembly of the system in inhomogeneous ground
and enables the assembly of the system with a slightly
changed angle of inclination
- made of Magnelis®-coated material with very high corrosion
resistance
- enlarged and condensed perforation matched to the BDFCH
profiles, so as to enable Installation of system within the
range of 20-35 degrees of inclination of the panels in relation
to the ground
- better blocking of the SGKFM10x20PV locking screws
(with mushroom heads) due to the change of the oval holes
in to rectangular
- possibility to make solid channels with perforation only in
screwed points
For the assembly use SGKFM10x20PV Screw Sets
