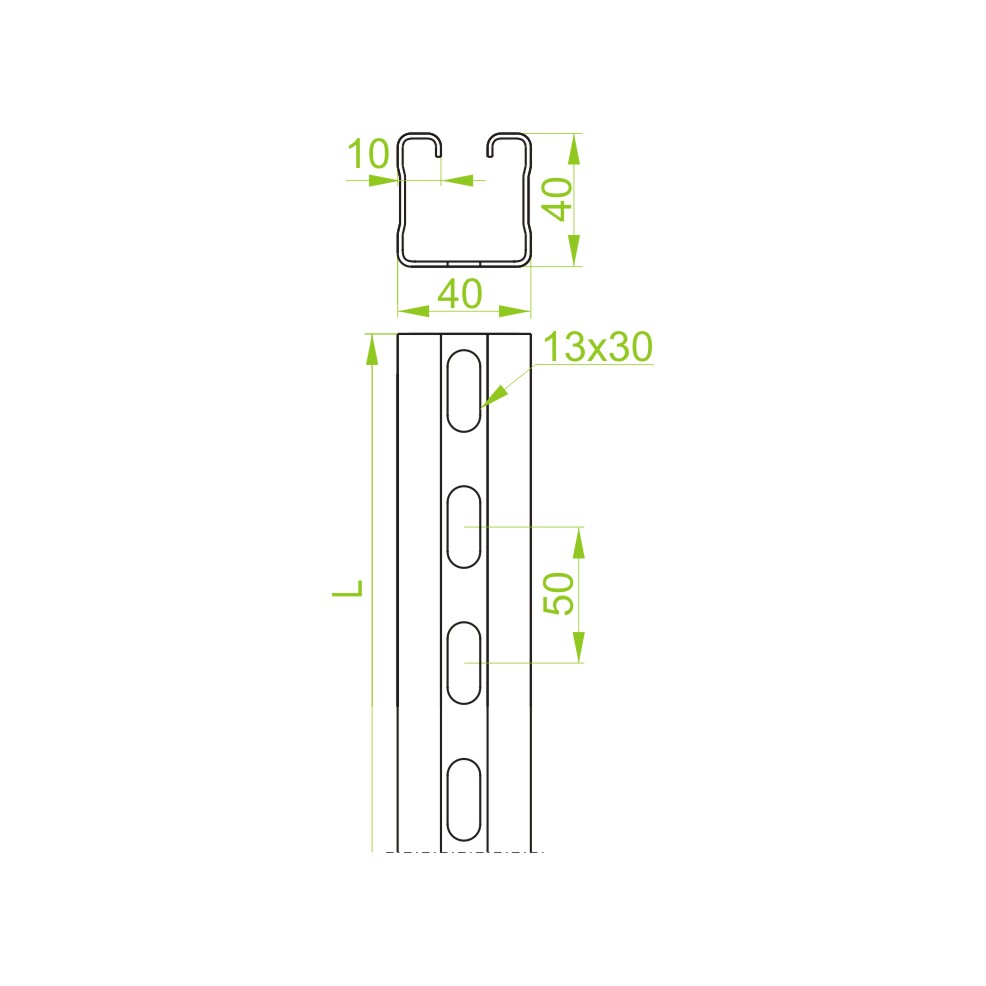

CTMC40H40... Support Channel

2.0 Cable Management Solutions – BAKS
Information

For hanging lamps and as a structural element for mounting ladders and cable trays. As a support element for wall brackets: WWSR..., WW..., WWS/WWSO..., WU/WUO..., WWSN..., WSZN..., WTL..., WWT..., WPL..., WPT..., WMCN..., WMC/WMCO..., WWCN..., WWC..., WMCT..., WWCT/WWCTO..., WWV...

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

L - painting in standard RAL colour

Additional information

– product available for order over 100 pcs.

– for large orders, it is possible to make the channel from sheet metal with a thickness of 2.5 mm.

– option F available for orders over 300 m

– use SGKM10x20 or SGM10x20 bolts to join the channel with the connector

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Catalogue number Length L (mm) Weight 1 pc. (kg) Quantity (pcs.) 3D file
CTMC40H40/3
Cable Management Solutions – BAKS
640030
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
6.86
Cable Management Solutions – BAKS
2
Plik *.std Add
CTMC40H40/6
Cable Management Solutions – BAKS
640060
Cable Management Solutions – BAKS
6 000 mm
Cable Management Solutions – BAKS
13.73
Cable Management Solutions – BAKS
1
Plik *.std Add
