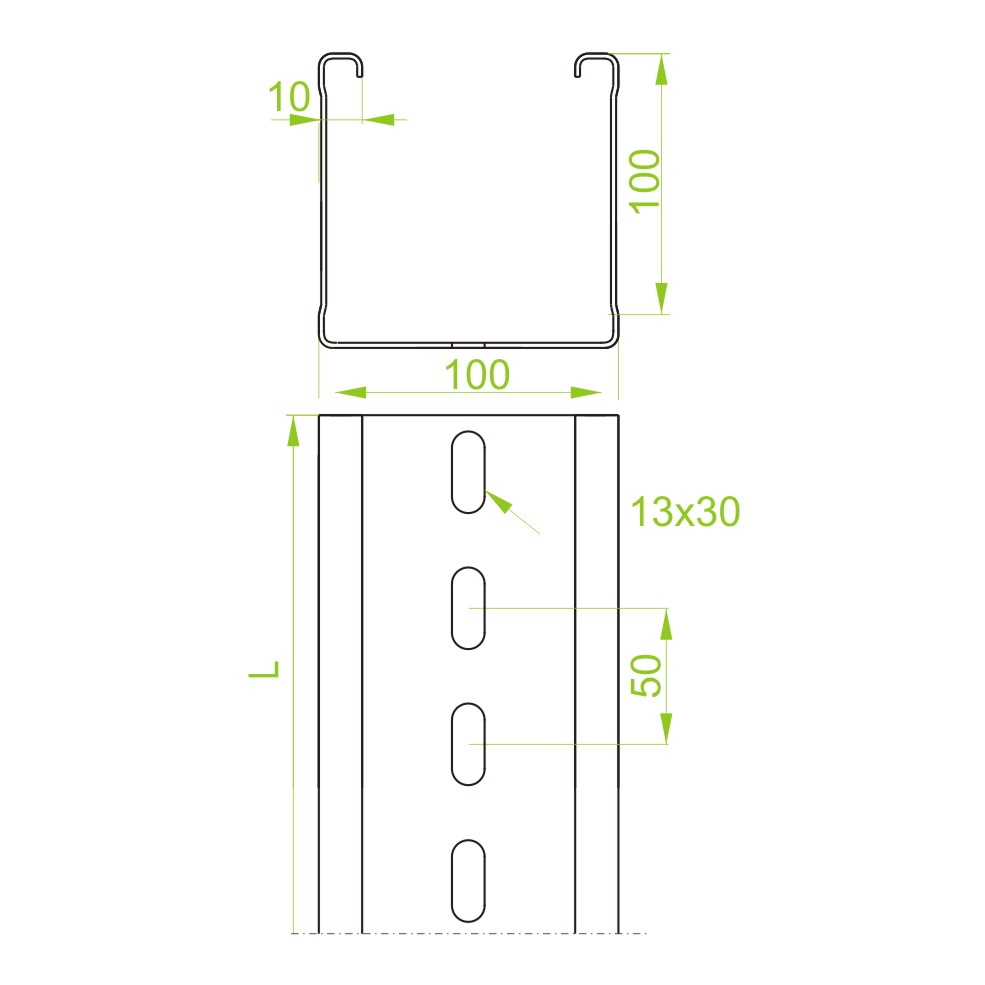

CTMT100H100 Support Channel

3.0 Cable Management Solutions – BAKS
Information

Forming of load-bearing structures. As a support element for wall brackets: WWSR..., WW..., WWS/WWSO..., WU/WUO..., WWSN..., WSZN..., WPL..., WPT..., WMCN..., WMC/WMCO..., WWCN..., WWC..., WMCT..., WWCT/WWCTO..., WWV...

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

L - painting in standard RAL colour

Additional information

– for large orders, it is possible to make the channel from sheet metal with a thickness of 1.5; 2.5 mm

– use SGKM10x20 or SGM10x20 bolts to join the channel with the connector

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Length L (mm) Weight 1 pc. (kg) Catalogue number Quantity (pcs.) 3D file
CTMT100H100/3
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
22.75
Cable Management Solutions – BAKS
641030
Cable Management Solutions – BAKS
1
Plik *.std Add
CTMT100H100/6
Cable Management Solutions – BAKS
6 000 mm
Cable Management Solutions – BAKS
45.50
Cable Management Solutions – BAKS
641060
Cable Management Solutions – BAKS
1
Plik *.std Add
