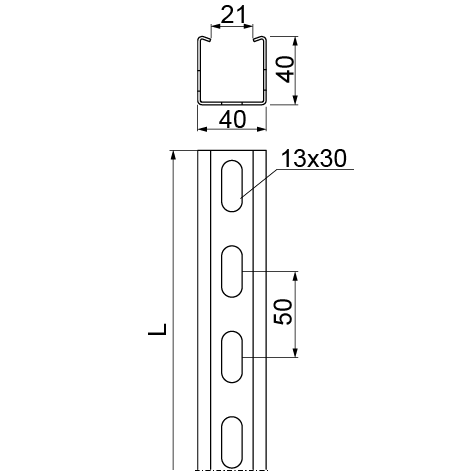

CWC40H40 Support Channel

Information

Used for suspending lighting, and as construction
element for installing cable trays, and ladders. Used
as an element for supporting Brackets: WW,
WWS/WWSO, WS, WSZ, WZS, WWC, WWCN,
WMC/WMCO, WMCN, WPL, WWD, WPT, WTL
and WWT.

Material

Steel, strip-galv. acc. to the Sendzimir
method to PN-EN 10346:2015-09
Available to order:
F- steel, hot-dip galv. to
PN-EN ISO 1461:2011, only for orders
up to 300 m
E- stainless steel (SS), sections up to 3 m,
except CWT40H40
L- powder coating in a full range of colours (PC)

Additional information

Important! The width of the channels made from 3 mm
is 40.5 mm. In case of large quantity orders available are any
sections to 6 m and thickness 2.5 mm.
For the assembly of channel in combination with channel connector
use SGKM10x20 or SGM10x20.



As substitute we suggest CM...41H41 in wider range of lengths

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Catalogue number Length L (mm) Weight 1 pc. (kg) Quantity (pcs.) Plik 3D
CWC40H40/2
Cable Management Solutions – BAKS
611220
Cable Management Solutions – BAKS
2,000 mm
Cable Management Solutions – BAKS
3.50
Cable Management Solutions – BAKS
8
Add
CWC40H40/3
Cable Management Solutions – BAKS
611230
Cable Management Solutions – BAKS
3,000 mm
Cable Management Solutions – BAKS
5.30
Cable Management Solutions – BAKS
8
Plik *.std Add
CWC40H40/6
Cable Management Solutions – BAKS
611260
Cable Management Solutions – BAKS
6,000 mm
Cable Management Solutions – BAKS
10.60
Cable Management Solutions – BAKS
8
Plik *.std Add
Technical data
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Wall thickness
(mm)
2
Cross-section area
(cm2)
1.70
Axis Y
Centre of gravity of the "open" type
e1
(m)
0.02
Centre of gravity
e2
(mm)
22.10
Moment of inertia
Iy
(cm4)
4.189
Bending strenght ratio of the ,,open" type
Wy1
(cm3)
2.34
Bending strenght ratio
Wy2
(cm3)
1.895
Radius of gyration
iy
(cm)
15.70
Axis Z
Moment of inertia
Iz
(cm4)
8.933
Bending strenght ratio
Wz
(cm3)
4.467
Radius of gyration
iz
(cm)
16.70
Load
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Installation scheme
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Cable Management Solutions – BAKS
Cable Management Solutions – BAKS
Cable Management Solutions – BAKS
Cable Management Solutions – BAKS
Cable Management Solutions – BAKS
Numerical data
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Distance Cable Management Solutions – BAKS
Cable Management Solutions – BAKS
Distance Cable Management Solutions – BAKS
Cable Management Solutions – BAKS
Load Cable Management Solutions – BAKS
Cable Management Solutions – BAKS
Pre-defined load Acceptable bend deflection Safety coefficient
P1 kN f1 acceptable mm n safety 70%
P2 - kN f2 acceptable mm
Cable Management Solutions – BAKS
P1, P2 - Obciążenie zadane, L1, L2, L3 - Odległości
Note! Selection and calculation results are only indicative and should be verified by a specialist
