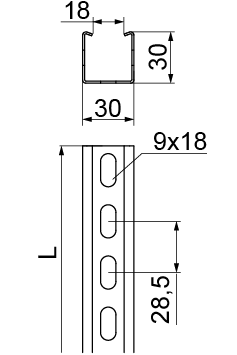

CWD30H30... Support Channel

1.2
Information

For hanging lamps and as a structural element for mounting ladders and cable trays. As a support element for wall brackets: WWSR..., WW..., WWS/WWSO..., WU/WUO..., WWSN...

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

L - painting in standard RAL colour

Additional information

– on large order possibility to make any length up to 6 m

– use SGKM8x14 or SGM8x14 bolts to join the channel with the connector

– option F available for orders over 300 m

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Catalogue number Length L (mm) Weight 1 pc. (kg) Quantity (pcs.) 3D file
CWD30H30/2
Cable Management Solutions – BAKS
613520
Cable Management Solutions – BAKS
2 000 mm
Cable Management Solutions – BAKS
1.64
Cable Management Solutions – BAKS
8
Plik *.std Add
CWD30H30/3
Cable Management Solutions – BAKS
613530
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
2.46
Cable Management Solutions – BAKS
8
Plik *.std Add
