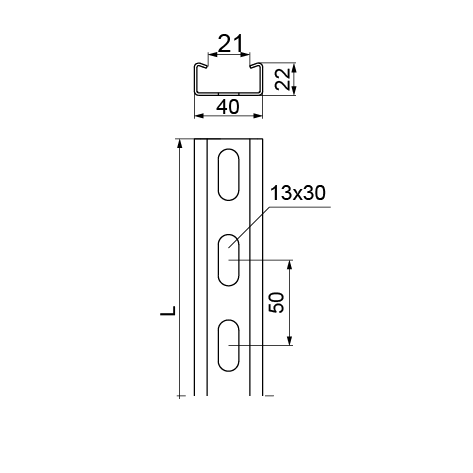

CWP40H22 Support Channel

1.5 Cable Management Solutions – BAKS
Information

Used for suspending lighting, and as construction
element for installing cable trays, and ladders. Used
as an element for supporting Brackets: WW,
WWS/WWSO, WS, WSZ, WZS, WWC, WWCN,
WMC/WMCO, WMCN, WPL, WWD, WPT.

Material

Steel, strip-galv. acc. to the Sendzimir
method to PN-EN 10346:2015-09
Available to order:
F- steel, hot-dip galv. to
PN-EN ISO 1461:2011, only for orders
up to 300 m
E- stainless steel (SS), sections up to 3 m,
L- powder coating in a full range of colours (PC)

Additional information

For the assembly of channel in combination with channel connector
use SGKM10x20 or SGM10x20.

As substitute we suggest CM...41H21 in wider range of lengths

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Length L (mm) Weight 1 pc. (kg) Catalogue number Quantity (pcs.) 3D file
CWP40H22/02
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
0.21
Cable Management Solutions – BAKS
610202
Cable Management Solutions – BAKS
50
Plik *.std Add
CWP40H22/03
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
0.31
Cable Management Solutions – BAKS
610203
Cable Management Solutions – BAKS
50
Plik *.std Add
CWP40H22/04
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
0.41
Cable Management Solutions – BAKS
610204
Cable Management Solutions – BAKS
30
Plik *.std Add
CWP40H22/05
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
0.52
Cable Management Solutions – BAKS
610205
Cable Management Solutions – BAKS
30
Plik *.std Add
CWP40H22/1
Cable Management Solutions – BAKS
1 000 mm
Cable Management Solutions – BAKS
1.03
Cable Management Solutions – BAKS
610210
Cable Management Solutions – BAKS
8
Plik *.std Add
CWP40H22/2
Cable Management Solutions – BAKS
2 000 mm
Cable Management Solutions – BAKS
2.06
Cable Management Solutions – BAKS
610220
Cable Management Solutions – BAKS
8
Plik *.std Add
CWP40H22/3
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
3.09
Cable Management Solutions – BAKS
610230
Cable Management Solutions – BAKS
8
Plik *.std Add
CWP40H22/6
Cable Management Solutions – BAKS
6 000 mm
Cable Management Solutions – BAKS
6.18
Cable Management Solutions – BAKS
610260
Cable Management Solutions – BAKS
8
Plik *.std Add
