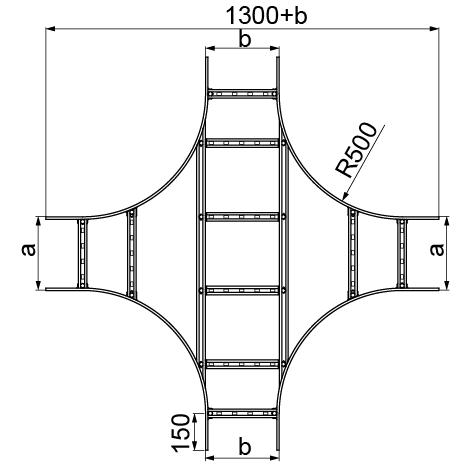

CZDST...H150 Horizontal Cross-over

3.0
Information

Cable route branching.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

– for large orders, it is possible to make fittings of any radius

– to connect the fitting to the ladder it is necessary to use LSSU... fitting connectors and SGKM8x16 bolts

– for non-standard orders specify dimension a and b (if a=400, b=600 the ordered fitting should have the designation CZDSC400/600/400/600H...)

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Width a (mm) Weight 1 pc. (kg) Catalogue number Quantity (pcs.)
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
mm
CZDST200H150
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
20.37
Cable Management Solutions – BAKS
432723
Cable Management Solutions – BAKS
1
Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
mm
CZDST300H150
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
21.34
Cable Management Solutions – BAKS
432733
Cable Management Solutions – BAKS
1
Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
mm
CZDST400H150
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
22.49
Cable Management Solutions – BAKS
432743
Cable Management Solutions – BAKS
1
Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
mm
CZDST500H150
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
23.92
Cable Management Solutions – BAKS
432753
Cable Management Solutions – BAKS
1
Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
mm
CZDST600H150
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
25.38
Cable Management Solutions – BAKS
432763
Cable Management Solutions – BAKS
1
Add
