CZKJ Horizontal Cross-over

Cable Management Solutions – BAKS
Information

Branching out cable routes.

Material

Steel, strip-galv. acc. to the Sendzimir
method PN-EN 10346:2015-09 (SG)
Available finishes:
F - steel, hot-dip galv.
to PN-EN ISO 1461:2011 (HDG)
E - stainless steel (SS), grade 1.4301 (AISI304)
L - powder coating in a full range of colours (PC)

Additional information

For the assembly use Screw Sets SGKM6x12 or SGM6x12.

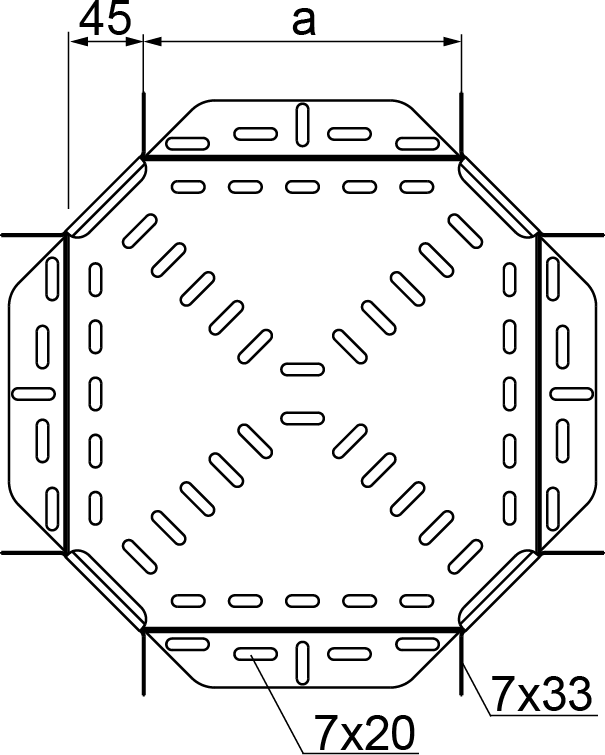

In case of special orders please specify dimensions a, b, c and d.

Note
Integrated couplers. Assembly without additional couplers.
Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Catalogue number Size a=b=c=d (mm) Weight 1 pc. (kg) Quantity (pcs.)
CZKJ50H60
Cable Management Solutions – BAKS
164524
Cable Management Solutions – BAKS
50
Cable Management Solutions – BAKS
0.33
Cable Management Solutions – BAKS
20
Add
CZKJ100H60
Cable Management Solutions – BAKS
166810
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
0.48
Cable Management Solutions – BAKS
20
Add
CZKJ150H60
Cable Management Solutions – BAKS
166815
Cable Management Solutions – BAKS
150
Cable Management Solutions – BAKS
0.67
Cable Management Solutions – BAKS
10
Add
CZKJ200H60
Cable Management Solutions – BAKS
166820
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
0.96
Cable Management Solutions – BAKS
10
Add
CZKJ300H60
Cable Management Solutions – BAKS
166830
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
1.49
Cable Management Solutions – BAKS
10
Add
