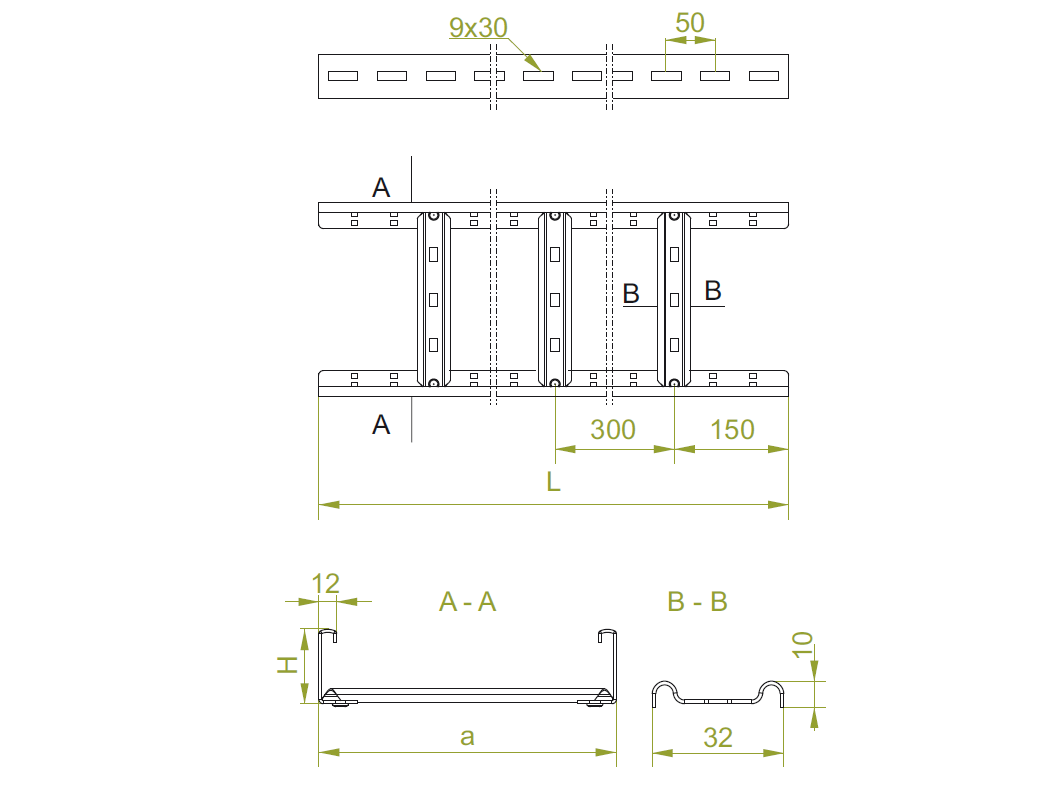

DKC Cable Ladder H45

Information

Cable routing

Material

Steel, strip-galv. acc. to the Sendzimir
PN-EN 10346:2015-09 (SG)
Available finishes:
F- steel, hot-dip galv.
to PN-EN ISO 1461:2011 (HDG)
E- stainless steel (SS), grade 1.4301 (AISI304),
sections to 3m long.
L- powder coating in a full range of colours (PC)

Additional information

NOTE
Cable ladder with rungs adapted to fixing
Cable Clamps UKZ/UKZO
available upon special order:
- cable ladders 2m long
- cable ladders 150, 250 mm wide

NOTE
For horizontal assembly of ladders with rungs directly to the wall
we recommend using ladders with double riveting of rungs
to the side. Installation of the ladder additionally
strengthened with flat bars

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Catalogue number Width a (mm) Length L (mm)
Effective sectio
Weight (1m) (kg) Quantity in box (pcs. / m.) Plik 3D
Cable Management Solutions – BAKS
100 mm
Cable Management Solutions – BAKS
2700 mm
DKC100H45/3N
Cable Management Solutions – BAKS
445710
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
3,000 mm
Cable Management Solutions – BAKS
2,700
Cable Management Solutions – BAKS
2.74 kg
Cable Management Solutions – BAKS
4 / 12 pcs. / m.
Plik *.std Add
DKC100H45/6N
Cable Management Solutions – BAKS
445810
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
6,000 mm
Cable Management Solutions – BAKS
2,700
Cable Management Solutions – BAKS
2.74 kg
Cable Management Solutions – BAKS
2 / 12 pcs. / m.
Plik *.std Add
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
5400 mm
DKC200H45/3N
Cable Management Solutions – BAKS
445720
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
3,000 mm
Cable Management Solutions – BAKS
5,400
Cable Management Solutions – BAKS
3.10 kg
Cable Management Solutions – BAKS
4 / 12 pcs. / m.
Plik *.std Add
DKC200H45/6N
Cable Management Solutions – BAKS
445820
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
6,000 mm
Cable Management Solutions – BAKS
5,400
Cable Management Solutions – BAKS
3.10 kg
Cable Management Solutions – BAKS
2 / 12 pcs. / m.
Plik *.std Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
8100 mm
DKC300H45/3N
Cable Management Solutions – BAKS
445730
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
3,000 mm
Cable Management Solutions – BAKS
8,100
Cable Management Solutions – BAKS
3.48 kg
Cable Management Solutions – BAKS
4 / 12 pcs. / m.
Plik *.std Add
DKC300H45/6N
Cable Management Solutions – BAKS
445830
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
6,000 mm
Cable Management Solutions – BAKS
8,100
Cable Management Solutions – BAKS
3.48 kg
Cable Management Solutions – BAKS
2 / 12 pcs. / m.
Plik *.std Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
10800 mm
DKC400H45/3N
Cable Management Solutions – BAKS
445740
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
3,000 mm
Cable Management Solutions – BAKS
10,800
Cable Management Solutions – BAKS
4.02 kg
Cable Management Solutions – BAKS
2 / 6 pcs. / m.
Plik *.std Add
DKC400H45/6N
Cable Management Solutions – BAKS
445840
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
6,000 mm
Cable Management Solutions – BAKS
10,800
Cable Management Solutions – BAKS
4.02 kg
Cable Management Solutions – BAKS
2 / 12 pcs. / m.
Plik *.std Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
13500 mm
DKC500H45/3N
Cable Management Solutions – BAKS
445750
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
3,000 mm
Cable Management Solutions – BAKS
13,500
Cable Management Solutions – BAKS
4.20 kg
Cable Management Solutions – BAKS
2 / 6 pcs. / m.
Plik *.std Add
DKC500H45/6N
Cable Management Solutions – BAKS
445850
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
6,000 mm
Cable Management Solutions – BAKS
13,500
Cable Management Solutions – BAKS
4.20 kg
Cable Management Solutions – BAKS
2 / 12 pcs. / m.
Plik *.std Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
16200 mm
DKC600H45/3N
Cable Management Solutions – BAKS
445760
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
3,000 mm
Cable Management Solutions – BAKS
16,200
Cable Management Solutions – BAKS
4.57 kg
Cable Management Solutions – BAKS
2 / 6 pcs. / m.
Plik *.std Add
DKC600H45/6N
Cable Management Solutions – BAKS
445860
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
6,000 mm
Cable Management Solutions – BAKS
16,200
Cable Management Solutions – BAKS
4.57 kg
Cable Management Solutions – BAKS
2 / 12 pcs. / m.
Plik *.std Add
