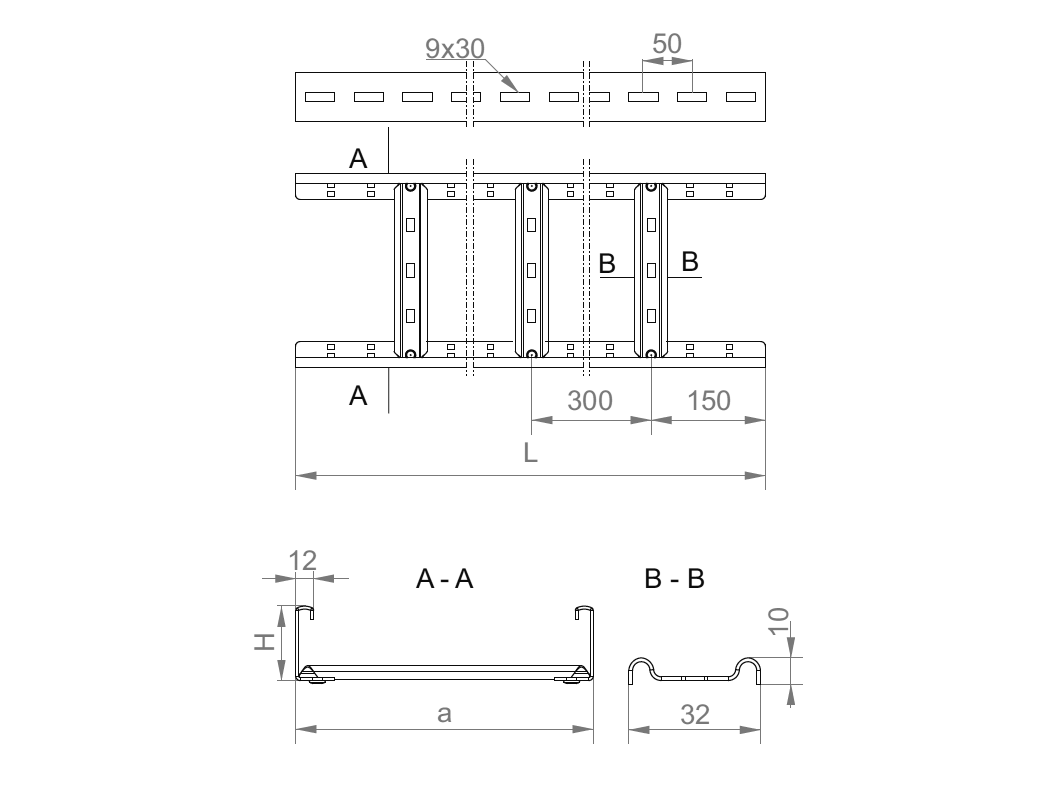

DKC...H50N Cable Ladder

2.0
Information

Cable routing

Material

Steel, strip-galv. acc. to the Sendzimir
PN-EN 10346:2015-09 (SG)
Available finishes:
F- steel, hot-dip galv.
to PN-EN ISO 1461:2011 (HDG)
E- stainless steel (SS), grade 1.4301 (AISI304),
sections to 3m long.
L- powder coating in a full range of colours (PC)

Additional information

NOTE
Cable ladder with rungs adapted to fixing
Cable Clamps UKZ/UKZO
available upon special order:
- cable ladders 2m long
- cable ladders 150, 250 mm wide

NOTE
For horizontal assembly of ladders with rungs directly to the wall
we recommend using ladders with double riveting of rungs
to the side. Installation of the ladder additionally
strengthened with flat bars

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Catalogue number Width a (mm) Length L (mm) Effective section Weight (1m) (kg) Quantity in box (pcs. / m.) 3D file
Cable Management Solutions – BAKS
100 mm
Cable Management Solutions – BAKS
3200 mm
DKC100H50/3N
Cable Management Solutions – BAKS
455710
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
3,200
Cable Management Solutions – BAKS
2.90 kg
Cable Management Solutions – BAKS
4 / 12 pcs. / m.
Plik *.std Add
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
6400 mm
DKC200H50/3N
Cable Management Solutions – BAKS
455720
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
6,400
Cable Management Solutions – BAKS
3.26 kg
Cable Management Solutions – BAKS
4 / 12 pcs. / m.
Plik *.std Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
9600 mm
DKC300H50/3N
Cable Management Solutions – BAKS
455730
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
9,600
Cable Management Solutions – BAKS
3.64 kg
Cable Management Solutions – BAKS
4 / 12 pcs. / m.
Plik *.std Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
12800 mm
DKC400H50/3N
Cable Management Solutions – BAKS
455740
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
12,800
Cable Management Solutions – BAKS
4.18 kg
Cable Management Solutions – BAKS
2 / 6 pcs. / m.
Plik *.std Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
16000 mm
DKC500H50/3N
Cable Management Solutions – BAKS
455750
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
16,000
Cable Management Solutions – BAKS
4.36 kg
Cable Management Solutions – BAKS
2 / 6 pcs. / m.
Plik *.std Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
19200 mm
DKC600H50/3N
Cable Management Solutions – BAKS
455760
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
19,200
Cable Management Solutions – BAKS
4.73 kg
Cable Management Solutions – BAKS
2 / 6 pcs. / m.
Plik *.std Add
