DSC...H110 Cable Ladder

2.0
Information

Routing the cable route in halls or areas with limited support structures. The high strength of the trays allows the use of supports even every 8 m.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

– ladder with rungs suitable for mounting UK/UKO... and UKP... cable clamps

– option E – only for lengths up to 3 m – execution with less dense perforation in the bottom of the board (it

is possible to deliver to the customer connected with couplings two 3 m sections giving a length of 6 m)

– for large orders, it is possible to produce ladders with lengths from 2 to 12 m and ladders made of sheet

metal with a thickness of 1.2 or 2.5 mm

– * - product available for order over 200 m

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS

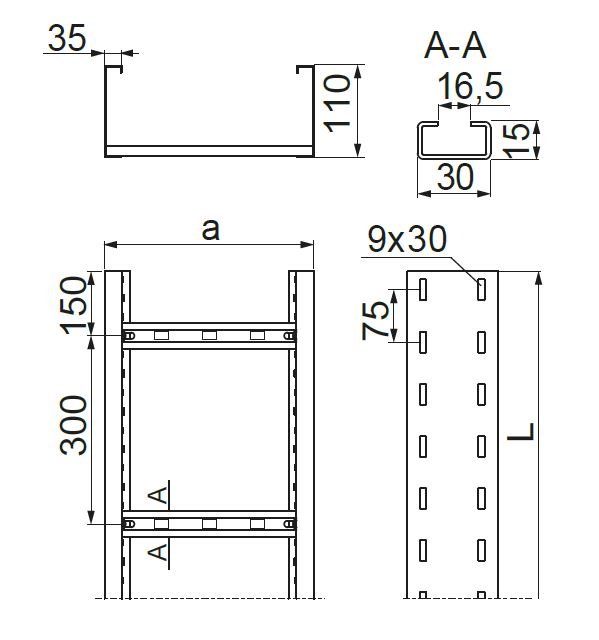

Symbol Length L (mm) Width a (mm) Catalogue number Quantity in box (pcs. / m.) Weight (1m) (kg) Effective section 3D file
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
17400 mm
DSC200H110/3
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
411723
Cable Management Solutions – BAKS
2 / 6 pcs. / m.
Cable Management Solutions – BAKS
6.05 kg
Cable Management Solutions – BAKS
17,400
Plik *.std Add
DSC200H110/6
Cable Management Solutions – BAKS
6 000 mm
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
411826
Cable Management Solutions – BAKS
2 / 12 pcs. / m.
Cable Management Solutions – BAKS
6.05 kg
Cable Management Solutions – BAKS
17,400
Plik *.std Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
26600 mm
DSC300H110/3
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
411733
Cable Management Solutions – BAKS
2 / 6 pcs. / m.
Cable Management Solutions – BAKS
6.19 kg
Cable Management Solutions – BAKS
26,600
Plik *.std Add
DSC300H110/6
Cable Management Solutions – BAKS
6 000 mm
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
411836
Cable Management Solutions – BAKS
2 / 12 pcs. / m.
Cable Management Solutions – BAKS
6.19 kg
Cable Management Solutions – BAKS
26,600
Plik *.std Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
35800 mm
DSC400H110/3
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
411743
Cable Management Solutions – BAKS
2 / 6 pcs. / m.
Cable Management Solutions – BAKS
6.68 kg
Cable Management Solutions – BAKS
35,800
Plik *.std Add
DSC400H110/6
Cable Management Solutions – BAKS
6 000 mm
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
411846
Cable Management Solutions – BAKS
2 / 12 pcs. / m.
Cable Management Solutions – BAKS
6.68 kg
Cable Management Solutions – BAKS
35,800
Plik *.std Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
45000 mm
DSC500H110/3
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
411753
Cable Management Solutions – BAKS
2 / 6 pcs. / m.
Cable Management Solutions – BAKS
6.96 kg
Cable Management Solutions – BAKS
45,000
Plik *.std Add
DSC500H110/6
Cable Management Solutions – BAKS
6 000 mm
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
411856
Cable Management Solutions – BAKS
2 / 12 pcs. / m.
Cable Management Solutions – BAKS
6.96 kg
Cable Management Solutions – BAKS
45,000
Plik *.std Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
54200 mm
DSC600H110/3
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
411763
Cable Management Solutions – BAKS
2 / 6 pcs. / m.
Cable Management Solutions – BAKS
7.21 kg
Cable Management Solutions – BAKS
54,200
Plik *.std Add
DSC600H110/6
Cable Management Solutions – BAKS
6 000 mm
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
411866
Cable Management Solutions – BAKS
2 / 12 pcs. / m.
Cable Management Solutions – BAKS
7.21 kg
Cable Management Solutions – BAKS
54,200
Plik *.std Add
