DSC...H150 Cable Ladder

2.0
Information

Routing the cable route in halls or areas with limited support structures. The high strength of the trays allows the use of supports even every 10 m.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

– ladder with rungs suitable for mounting UK/UKO... and UKP... cable clamps

– option E – only for sections up to 3 m – execution without embossing in the sides and with less dense perforation in the bottom of the board (there is a possibility of delivering to the customer connected with couplings two sections of 3 m giving length of 6 m)

– for large orders, it is possible to produce ladders with lengths from 2 to 12 m and ladders made of sheet metal with a thickness of 1.2 or 2.5 mm

– * - product available for order over 200 m

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS

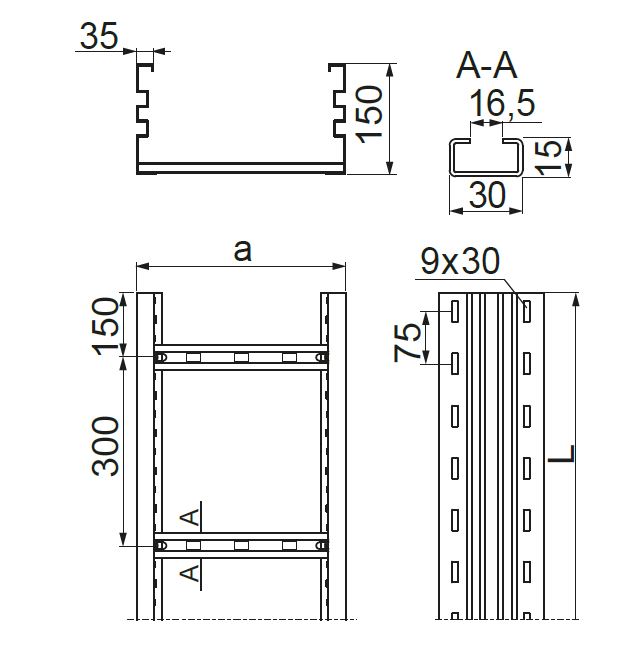

Symbol Length L (mm) Width a (mm) Catalogue number Quantity in box (pcs. / m.) Weight (1m) (kg) Effective section 3D file
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
27800 mm
DSC200H150/6
Cable Management Solutions – BAKS
6 000 mm
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
431820
Cable Management Solutions – BAKS
1 / 6 pcs. / m.
Cable Management Solutions – BAKS
8.65 kg
Cable Management Solutions – BAKS
27,800
Plik *.std Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
37600 mm
DSC300H150/6
Cable Management Solutions – BAKS
6 000 mm
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
431830
Cable Management Solutions – BAKS
1 / 6 pcs. / m.
Cable Management Solutions – BAKS
8.79 kg
Cable Management Solutions – BAKS
37,600
Plik *.std Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
50700 mm
DSC400H150/6
Cable Management Solutions – BAKS
6 000 mm
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
431840
Cable Management Solutions – BAKS
1 / 6 pcs. / m.
Cable Management Solutions – BAKS
9.28 kg
Cable Management Solutions – BAKS
50,700
Plik *.std Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
63900 mm
DSC500H150/6
Cable Management Solutions – BAKS
6 000 mm
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
431850
Cable Management Solutions – BAKS
1 / 6 pcs. / m.
Cable Management Solutions – BAKS
9.56 kg
Cable Management Solutions – BAKS
63,900
Plik *.std Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
87800 mm
DSC600H150/6
Cable Management Solutions – BAKS
6 000 mm
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
431860
Cable Management Solutions – BAKS
1 / 6 pcs. / m.
Cable Management Solutions – BAKS
9.81 kg
Cable Management Solutions – BAKS
87,800
Plik *.std Add
