ELKSC...H160 Adjustable Vertical Bend Element

2.0 Cable Management Solutions – BAKS
Information

Increasing the radius of the adjustable bend.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

– use SMM10x20 bolts to mount hinged elements

– for large orders, it is possible to make fittings from sheet metal with a thickness of 1.5 mm

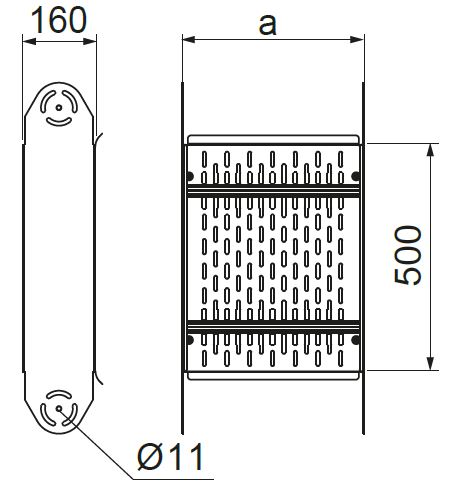

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Catalogue number Width a (mm) Weight 1 pc. (kg) Quantity (pcs.)
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
mm
ELKSC200H160
Cable Management Solutions – BAKS
287016
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
5.05
Cable Management Solutions – BAKS
1
Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
mm
ELKSC300H160
Cable Management Solutions – BAKS
288016
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
5.33
Cable Management Solutions – BAKS
1
Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
mm
ELKSC400H160
Cable Management Solutions – BAKS
289016
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
5.59
Cable Management Solutions – BAKS
1
Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
mm
ELKSC500H160
Cable Management Solutions – BAKS
287416
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
5.88
Cable Management Solutions – BAKS
1
Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
mm
ELKSC600H160
Cable Management Solutions – BAKS
288416
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
6.16
Cable Management Solutions – BAKS
1
Add
