ELZCH200 Adjustable Vertical Bend Element

2.0
Information

Increasing the radius of the adjustable bend.

Material

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

Available finishes:

E - stainless steel

L - painting in standard RAL colour

Additional information

– use SMM8x16F bolts to mount hinged elements

– possibility to form bends of any radius by adding hinged connectors

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Add

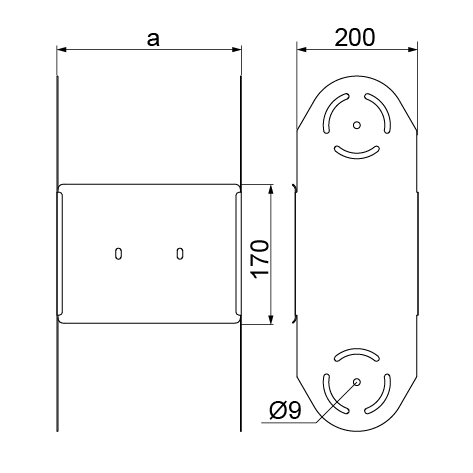

Symbol Width a (mm) Weight 1 pc. (kg) Catalogue number Quantity (pcs.)
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
mm
ELZC200H200
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
2.83
Cable Management Solutions – BAKS
373320
Cable Management Solutions – BAKS
10 		Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
mm
ELZC300H200
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
3.19
Cable Management Solutions – BAKS
373330
Cable Management Solutions – BAKS
4 		Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
mm
ELZC400H200
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
3.54
Cable Management Solutions – BAKS
373340
Cable Management Solutions – BAKS
4 		Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
mm
ELZC500H200
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
3.89
Cable Management Solutions – BAKS
373350
Cable Management Solutions – BAKS
4 		Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
mm
ELZC600H200
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
4.25
Cable Management Solutions – BAKS
373360
Cable Management Solutions – BAKS
4 		Add
