KDSZH60 Wire Mesh Cable Tray

Cable Management Solutions – BAKS Cable Management Solutions – BAKS Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Information

Cable routing.

Material

Electro-galvanised wire (EG)
Available finishes:
E- stainless steel wire (SS), grade 1.4301 (AISI304)
L- powder coating in a full range of colours (PC)

Additional information

Innovative connection of wire mesh cable trays!
Due to high durability parameters of materials used
for snap-in connectors we reach firm and sollid connection
of wire mesh cable trays, equal to connection by usual
bolted connectors.

Amount of bottom connectors for cable trays of widths:
- 100-200 mm - 1 pcs
- 300-600 mm - 2 pcs

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS

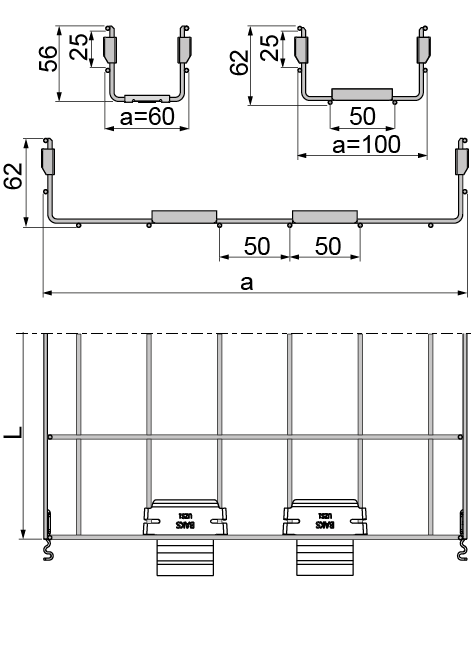

Symbol Catalogue number Width a (mm)
Effective sectio
Length L (mm) Weight (1m) (kg) Quantity in box (pcs. / m.) Plik 3D
Cable Management Solutions – BAKS
60 mm
Cable Management Solutions – BAKS
2200 mm
KDSZ60H60/3
Cable Management Solutions – BAKS
940106
Cable Management Solutions – BAKS
60
Cable Management Solutions – BAKS
2,200
Cable Management Solutions – BAKS
3,000 mm
Cable Management Solutions – BAKS
0.61 kg
Cable Management Solutions – BAKS
8 / 24 pcs. / m.
Plik *.std Add
Cable Management Solutions – BAKS
100 mm
Cable Management Solutions – BAKS
4300 mm
KDSZ100H60/3
Cable Management Solutions – BAKS
940110
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
4,300
Cable Management Solutions – BAKS
3,000 mm
Cable Management Solutions – BAKS
0.88 kg
Cable Management Solutions – BAKS
8 / 24 pcs. / m.
Plik *.std Add
Cable Management Solutions – BAKS
150 mm
Cable Management Solutions – BAKS
7000 mm
KDSZ150H60/3
Cable Management Solutions – BAKS
940115
Cable Management Solutions – BAKS
150
Cable Management Solutions – BAKS
7,000
Cable Management Solutions – BAKS
3,000 mm
Cable Management Solutions – BAKS
0.94 kg
Cable Management Solutions – BAKS
8 / 24 pcs. / m.
Plik *.std Add
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
9400 mm
KDSZ200H60/3
Cable Management Solutions – BAKS
940120
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
9,400
Cable Management Solutions – BAKS
3,000 mm
Cable Management Solutions – BAKS
1.21 kg
Cable Management Solutions – BAKS
4 / 12 pcs. / m.
Plik *.std Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
14600 mm
KDSZ300H60/3
Cable Management Solutions – BAKS
940130
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
14,600
Cable Management Solutions – BAKS
3,000 mm
Cable Management Solutions – BAKS
1.88 kg
Cable Management Solutions – BAKS
4 / 12 pcs. / m.
Plik *.std Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
19800 mm
KDSZ400H60/3
Cable Management Solutions – BAKS
940140
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
19,800
Cable Management Solutions – BAKS
3,000 mm
Cable Management Solutions – BAKS
2.26 kg
Cable Management Solutions – BAKS
2 / 6 pcs. / m.
Plik *.std Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
25000 mm
KDSZ500H60/3
Cable Management Solutions – BAKS
940150
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
25,000
Cable Management Solutions – BAKS
3,000 mm
Cable Management Solutions – BAKS
3.21 kg
Cable Management Solutions – BAKS
2 / 6 pcs. / m.
Plik *.std Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
30200 mm
KDSZ600H60/3
Cable Management Solutions – BAKS
940160
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
30,200
Cable Management Solutions – BAKS
3,000 mm
Cable Management Solutions – BAKS
3.68 kg
Cable Management Solutions – BAKS
2 / 6 pcs. / m.
Plik *.std Add
Load
