Information

Routing a cable route.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

L - painting in standard RAL colour

Additional information

Advantages of new system:
- Fast and easy assembly
- Firm click connection
- Deep stamping around the slots in the bottom increase the strength
- Dense perforation with stamping around the slots for excellent heat
transfer – designed to enable cable tray installation on supports from
BAKS anywhere within the system

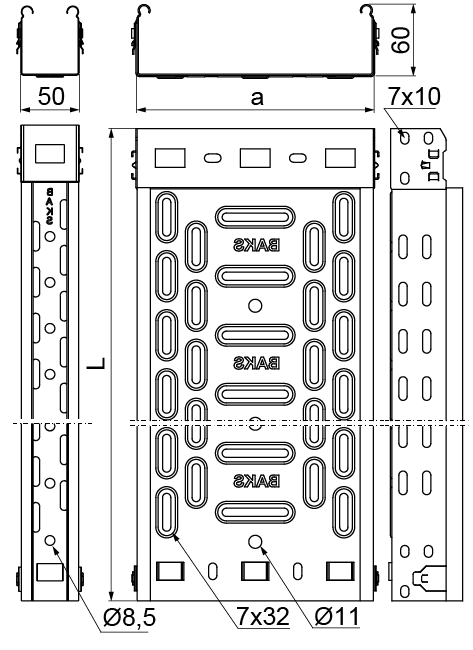

Slotted holes Ø11 in the cable tray bottom allow for suspension
on a threaded rod

Product versions

Add

	Symbol	Width a (mm)	Length L (mm)	Weight (1m) (kg)	Effective section	Catalogue number	Quantity in box (pcs. / m.)
50 mm 2900 mm
	KFL50H60/2	50	2 000 mm	0.98 kg	2,900	160923	4 / 8 pcs. / m.	Add
	KFL50H60/3	50	3 000 mm	0.98 kg	2,900	161023	4 / 12 pcs. / m.	Add
100 mm 5800 mm
	KFL100H60/2	100	2 000 mm	1.17 kg	5,800	161123	4 / 8 pcs. / m.	Add
	KFL100H60/3	100	3 000 mm	1.17 kg	5,800	161223	4 / 12 pcs. / m.	Add
150 mm 8800 mm
	KFL150H60/2	150	2 000 mm	1.43 kg	8,800	161323	4 / 8 pcs. / m.	Add
	KFL150H60/3	150	3 000 mm	1.43 kg	8,800	161423	4 / 12 pcs. / m.	Add
200 mm 11800 mm
	KFL200H60/2	200	2 000 mm	1.63 kg	11,800	161523	4 / 8 pcs. / m.	Add
	KFL200H60/3	200	3 000 mm	1.63 kg	11,800	161623	4 / 12 pcs. / m.	Add
300 mm 17800 mm
	KFL300H60/2	300	2 000 mm	2.11 kg	17,800	161723	2 / 4 pcs. / m.	Add
	KFL300H60/3	300	3 000 mm	2.11 kg	17,800	161823	2 / 6 pcs. / m.	Add
