0.7

Information

Cable routing

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

L - painting in standard RAL colour

Additional information

* - Versions over 300 m available on request

Possibility of joining cable tray sections together through sliding
one into another and connector-free assembly. For the assembly
use Screw Sets SGKM6x10 or SGM6x10.

Product versions

Add

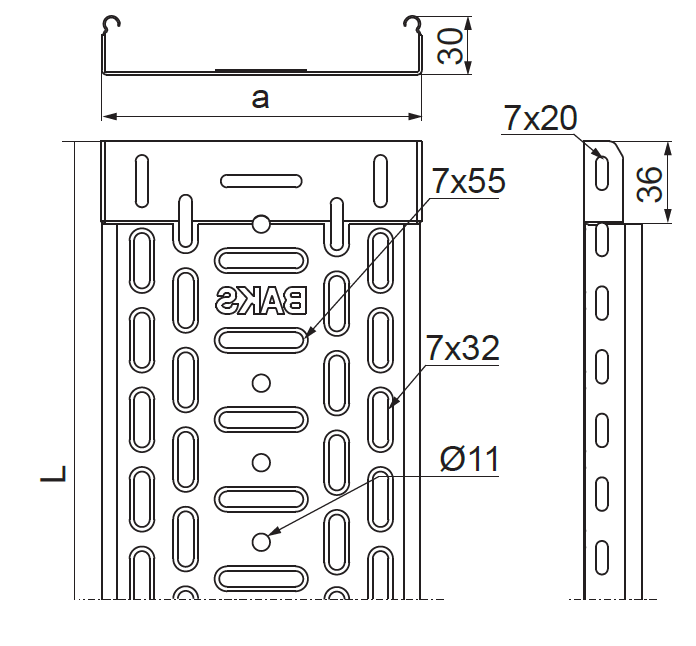

	Symbol	Length L (mm)	Width a (mm)	Catalogue number	Quantity in box (pcs. / m.)	Weight (1m) (kg)	Effective section
35 mm 850 mm
	KGL35H30/3	3 000 mm	35	130403	4 / 12 pcs. / m.	0.53 kg	850	Add
50 mm 1300 mm
	KGL50H30/3	3 000 mm	50	130405	4 / 12 pcs. / m.	0.61 kg	1,300	Add
100 mm 2800 mm
	KGL100H30/3	3 000 mm	100	130116	4 / 12 pcs. / m.	0.84 kg	2,800	Add
150 mm 4300 mm
	KGL150H30/3	3 000 mm	150	130216	4 / 12 pcs. / m.	1.06 kg	4,300	Add
200 mm 5800 mm
	KGL200H30/3	3 000 mm	200	130316	4 / 12 pcs. / m.	1.39 kg	5,800	Add
300 mm 8800 mm
	KGL300H30/3	3 000 mm	300	130416	4 / 12 pcs. / m.	1.89 kg	8,800	Add
