Routing a cable route.
Material
G - galvanised
Available finishes:
F - hot dip galvanised steel PN-EN ISO 1461:2023-02
E - stainless steel
L - painting in standard RAL colour
Additional information
Max. safe load

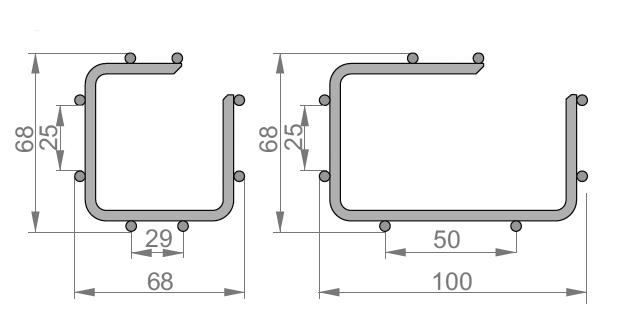

KGS60H60/3: 5 kg/m
KGS100H60/3: 5 kg/m
Max. spacing of supports: 1.5m
To join up wire mesh cable trays for the following widths:
- 60mm use 2 x USSN/USSO
- 100 ÷ 200mm use min. 3 x USSN/USSO
- 300 ÷ 400mm use min. 4 x USSN/USSO
- 500 ÷ 600mm use min. 5 x USSN/USSO
