KKBJ...H50 Horizontal Bend 90°

1.0
Information

Diversions in cable routing.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

For the assembly use Screw Sets SGKM6x12 or SGM6x12.

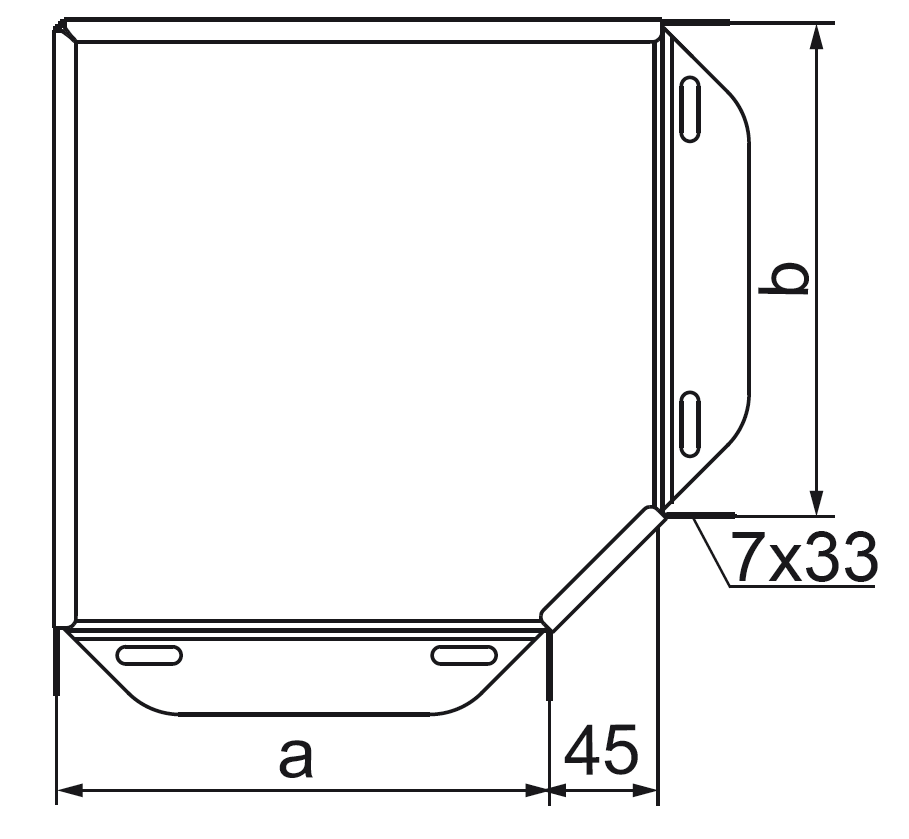

In case of special orders please specify dimensions a and b.

Note
Integrated couplers. Assembly without additional couplers.
Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Catalogue number Size a=b (mm) Weight 1 pc. (kg) Quantity (pcs.)
KKBJ50H50
Cable Management Solutions – BAKS
150101
Cable Management Solutions – BAKS
50
Cable Management Solutions – BAKS
0.22
Cable Management Solutions – BAKS
1
Add
KKBJ100H50
Cable Management Solutions – BAKS
150201
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
0.34
Cable Management Solutions – BAKS
1
Add
KKBJ150H50
Cable Management Solutions – BAKS
150301
Cable Management Solutions – BAKS
150
Cable Management Solutions – BAKS
0.58
Cable Management Solutions – BAKS
1
Add
KKBJ200H50
Cable Management Solutions – BAKS
150401
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
0.79
Cable Management Solutions – BAKS
1
Add
KKBJ300H50
Cable Management Solutions – BAKS
150601
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
1.32
Cable Management Solutions – BAKS
1
Add
