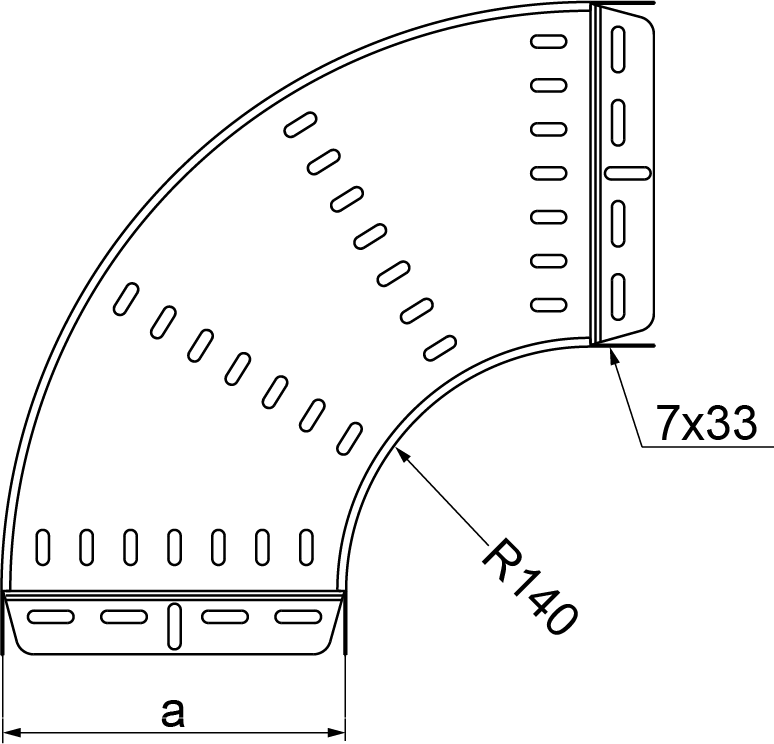

KKPJ...H100 Horizontal Bend 90°

1.0
Information

Diversions in cable routing.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

For the assembly use Screw Sets SGKM6x12 or SGM6x12.

Note
Integrated couplers. Assembly without additional couplers.
Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Weight 1 pc. (kg) Catalogue number Quantity (pcs.) Size a (mm)
KKPJ100H100
Cable Management Solutions – BAKS
0.82
Cable Management Solutions – BAKS
110114
Cable Management Solutions – BAKS
1
Cable Management Solutions – BAKS
100
Add
KKPJ150H100
Cable Management Solutions – BAKS
1.06
Cable Management Solutions – BAKS
110214
Cable Management Solutions – BAKS
1
Cable Management Solutions – BAKS
150
Add
KKPJ200H100
Cable Management Solutions – BAKS
1.33
Cable Management Solutions – BAKS
110314
Cable Management Solutions – BAKS
1
Cable Management Solutions – BAKS
200
Add
KKPJ300H100
Cable Management Solutions – BAKS
1.97
Cable Management Solutions – BAKS
110414
Cable Management Solutions – BAKS
1
Cable Management Solutions – BAKS
300
Add
Examples
