Information

APPLICATIONS
Installation of light systems.



MATERIAL
Steel, strip-galv. acc. to the Sendzimir method
to PN-EN 10346:2011 (SG).
Available finishes:
F - steel, hot-dip galv. to
PN-EN ISO 1461:2011 (HDG)
E - stainless steel (SS), grade 1.4301 (AISI304),
(only 3m)


Possibility of joining cable tray sections together through sliding
one into another and connector-free assembly. For installation
use Screw Sets SGKM6x12 or SGM6x12.


IMPORTANT!
Production is possible only for big orders.

Note
Cable trays support system without couplers. Optional connecting of trays through inserting one tray into another and wrench with screws. We recommend using of couplers with heavy loads only.
Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS

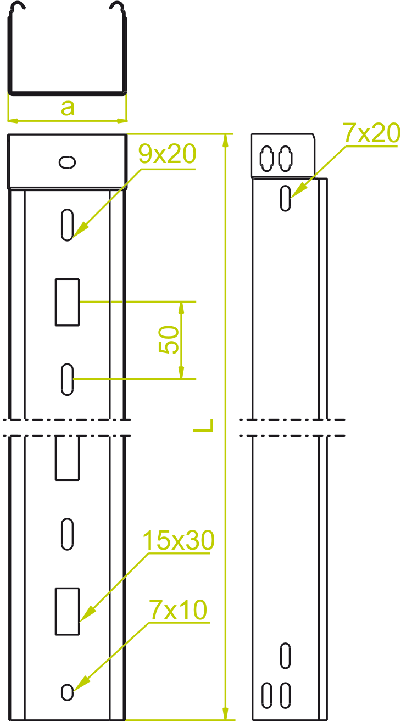

Symbol Catalogue number Length L (mm) Width a (mm) Quantity in box (pcs. / m.) Height H (mm) Weight (1m) (kg) Plik 3D
Cable Management Solutions – BAKS
75 mm
Cable Management Solutions – BAKS
mm
KLWL75H60/3
Cable Management Solutions – BAKS
164007
Cable Management Solutions – BAKS
3,000 mm
Cable Management Solutions – BAKS
75
Cable Management Solutions – BAKS
4 / 12 pcs. / m.
Cable Management Solutions – BAKS
60
Cable Management Solutions – BAKS
1.12 kg
Plik *.std Add
KLWL75H60/6
Cable Management Solutions – BAKS
164107
Cable Management Solutions – BAKS
6,000 mm
Cable Management Solutions – BAKS
75
Cable Management Solutions – BAKS
4 / 24 pcs. / m.
Cable Management Solutions – BAKS
60
Cable Management Solutions – BAKS
1.12 kg
Plik *.std Add
