1.5

Information

Cable routing

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

Cable Tray sections can be joined up only through the use of
connectors (lack of cut in the flange at the end of side profile).
Available when ordering in large quantity are 2m and 6m long
tray sections. For installation use Screw Sets SGKM6x12 or
SGM6x12.

NOTE!
The 1.5 mm thick, stainless steel trays have no upper embossing
(a right angle bend). The covers cannot be snapped closed.

Note
Connecting of trays with the use of couplers only.

Product versions

Add

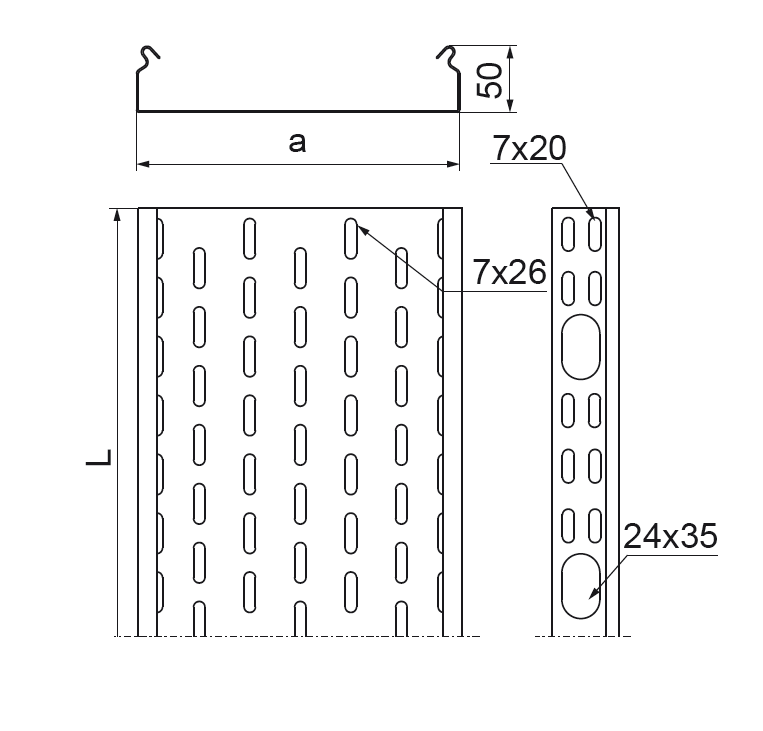

	Symbol	Catalogue number	Width a (mm)	Length L (mm)	Weight (1m) (kg)	Quantity in box (pcs. / m.)	Effective section
50 mm 2300 mm
	KOP 50H50/3	151805	50	3 000 mm	1.63 kg	4 / 12 pcs. / m.	2,300	Add
100 mm 4800 mm
	KOP100H50/3	151810	100	3 000 mm	2.07 kg	4 / 12 pcs. / m.	4,800	Add
200 mm 9800 mm
	KOP200H50/3	151820	200	3 000 mm	2.89 kg	4 / 12 pcs. / m.	9,800	Add
300 mm 14800 mm
	KOP300H50/3	151830	300	3 000 mm	3.82 kg	2 / 6 pcs. / m.	14,800	Add
400 mm 19800 mm
	KOP400H50/3	151240	400	3 000 mm	4.81 kg	2 / 6 pcs. / m.	19,800	Add
