KSC...H150 Cable Tray

2.0
Information

Routing the cable route in halls or areas with limited support structures. The high strength of the trays allows the use of supports even every 10 m.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

– trays adapted for mounting cable clamps UKZ1/UKZO1, UKZ2, UKZP1 and UKZP2

– option E – only for sections up to 3 m – execution without embossing in the sides and with less dense

perforation in the bottom of the board (there is a possibility of delivering to the customer connected with

couplings two sections of 3 m giving length of 6 m)

– for large orders, it is possible to produce trays with lengths from 2 to 12 m and trays made of sheet metal

with a thickness of 1.2 or 2.5 mm

– * - product available for order over 200 m

Note
Connecting of trays with the use of couplers only.
Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS

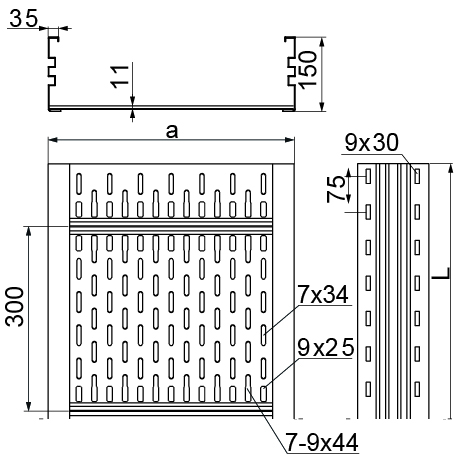

Symbol Length L (mm) Width a (mm) Catalogue number Weight (1m) (kg) Effective section Quantity in box (pcs. / m.) 3D file
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
27800 mm
KSC200H150/6
Cable Management Solutions – BAKS
6 000 mm
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
270121
Cable Management Solutions – BAKS
10 kg
Cable Management Solutions – BAKS
27,800
Cable Management Solutions – BAKS
1 / 6 pcs. / m.
Plik *.std Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
37600 mm
KSC300H150/6
Cable Management Solutions – BAKS
6 000 mm
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
270131
Cable Management Solutions – BAKS
10.90 kg
Cable Management Solutions – BAKS
37,600
Cable Management Solutions – BAKS
1 / 6 pcs. / m.
Plik *.std Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
50700 mm
KSC400H150/6
Cable Management Solutions – BAKS
6 000 mm
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
270141
Cable Management Solutions – BAKS
11.80 kg
Cable Management Solutions – BAKS
50,700
Cable Management Solutions – BAKS
1 / 6 pcs. / m.
Plik *.std Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
63900 mm
KSC500H150/6
Cable Management Solutions – BAKS
6 000 mm
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
270151
Cable Management Solutions – BAKS
12.70 kg
Cable Management Solutions – BAKS
63,900
Cable Management Solutions – BAKS
1 / 6 pcs. / m.
Plik *.std Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
87800 mm
KSC600H150/6
Cable Management Solutions – BAKS
6 000 mm
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
270161
Cable Management Solutions – BAKS
13.60 kg
Cable Management Solutions – BAKS
87,800
Cable Management Solutions – BAKS
1 / 6 pcs. / m.
Plik *.std Add
