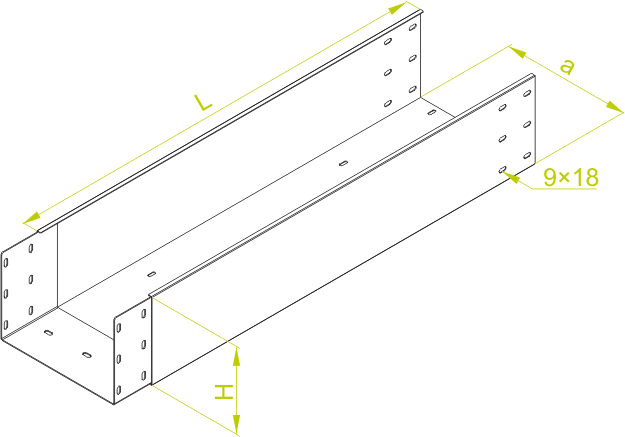

KZLPH200 Cable Tray with Integral Connector

1.5 2.0
1.5
Information

Cable routing.

Material

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

Available finishes:

E - stainless steel

L - painting in standard RAL colour

Additional information

– to connect 2 trays, use 14 sets of SGKFM8x14 or SGFM8x14 bolts

– drainage and cable fixing holes every 500 mm

Note
Integrated couplers. Assembly without additional couplers.
Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Add
Symbol Width a (mm) Length L (mm) Weight (1m) (kg) Catalogue number Quantity in box (pcs. / m.) Effective section
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
39800 mm
KZLP200H200/3
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
9.46 kg
Cable Management Solutions – BAKS
372720
Cable Management Solutions – BAKS
2 / 6 pcs. / m.
Cable Management Solutions – BAKS
39,800 		Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
59800 mm
KZLP300H200/3
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
10.99 kg
Cable Management Solutions – BAKS
372730
Cable Management Solutions – BAKS
2 / 6 pcs. / m.
Cable Management Solutions – BAKS
59,800 		Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
79800 mm
KZLP400H200/3
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
12.53 kg
Cable Management Solutions – BAKS
372740
Cable Management Solutions – BAKS
2 / 6 pcs. / m.
Cable Management Solutions – BAKS
79,800 		Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
99800 mm
KZLP500H200/3
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
14.17 kg
Cable Management Solutions – BAKS
372750
Cable Management Solutions – BAKS
2 / 6 pcs. / m.
Cable Management Solutions – BAKS
99,800 		Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
119800 mm
KZLP600H200/3
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
16 kg
Cable Management Solutions – BAKS
372760
Cable Management Solutions – BAKS
2 / 6 pcs. / m.
Cable Management Solutions – BAKS
119,800 		Add
Load
Cable Management Solutions – BAKS Cable Management Solutions – BAKS

Qdop. (kN/m)
0.0
L (m)
0.0
Filling value
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Cable Management Solutions – BAKS
Cable 1
Cable Management Solutions – BAKS
Cable Management Solutions – BAKS
Cable 2
Cable Management Solutions – BAKS
Cable Management Solutions – BAKS
Cable 3
Cable Management Solutions – BAKS
Cable Management Solutions – BAKS
Cable 4
Cable Management Solutions – BAKS
Cable Management Solutions – BAKS


Filling reserve (%)
Cable Management Solutions – BAKS
Filling correction (%)
Cable Management Solutions – BAKS
