KZLPH50 Cable Tray with Integral Connector

1.5
Information

Routing a cable route.

Material

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

Available finishes:

E - stainless steel

L - painting in standard RAL colour

Additional information

– to connect 2 trays, use 10 sets of SGKFM6x12 or SGFM6x12 bolts

– drainage and cable fixing holes every 500 mm

Note
Integrated couplers. Assembly without additional couplers.
Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS

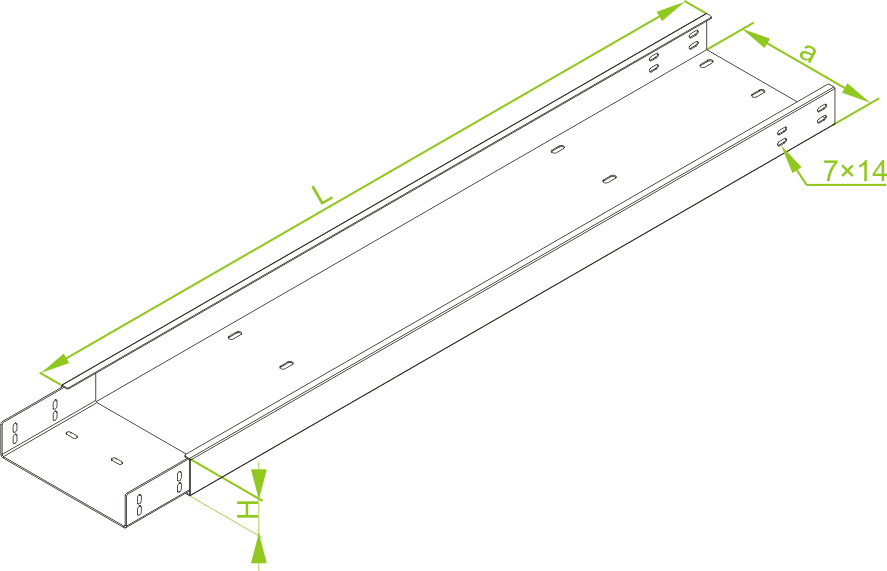

Symbol Width a (mm) Length L (mm) Effective section Weight (1m) (kg) Catalogue number Quantity in box (pcs. / m.)
Cable Management Solutions – BAKS
50 mm
Cable Management Solutions – BAKS
2300 mm
KZLP50H50/3
Cable Management Solutions – BAKS
50
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
2,300
Cable Management Solutions – BAKS
2.40 kg
Cable Management Solutions – BAKS
352705
Cable Management Solutions – BAKS
6 / 18 pcs. / m.
Add
Cable Management Solutions – BAKS
100 mm
Cable Management Solutions – BAKS
4800 mm
KZLP100H50/3
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
4,800
Cable Management Solutions – BAKS
3.31 kg
Cable Management Solutions – BAKS
352710
Cable Management Solutions – BAKS
6 / 18 pcs. / m.
Add
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
9800 mm
KZLP200H50/3
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
9,800
Cable Management Solutions – BAKS
4.65 kg
Cable Management Solutions – BAKS
352720
Cable Management Solutions – BAKS
4 / 12 pcs. / m.
Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
14800 mm
KZLP300H50/3
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
14,800
Cable Management Solutions – BAKS
6.09 kg
Cable Management Solutions – BAKS
352730
Cable Management Solutions – BAKS
4 / 12 pcs. / m.
Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
19800 mm
KZLP400H50/3
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
19,800
Cable Management Solutions – BAKS
7.52 kg
Cable Management Solutions – BAKS
352740
Cable Management Solutions – BAKS
2 / 6 pcs. / m.
Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
24800 mm
KZLP500H50/3
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
24,800
Cable Management Solutions – BAKS
9.06 kg
Cable Management Solutions – BAKS
352750
Cable Management Solutions – BAKS
2 / 6 pcs. / m.
Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
29800 mm
KZLP600H50/3
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
29,800
Cable Management Solutions – BAKS
10.50 kg
Cable Management Solutions – BAKS
352760
Cable Management Solutions – BAKS
2 / 6 pcs. / m.
Add
