Information

Routing a cable route.

Material

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

Available finishes:

E - stainless steel

L - painting in standard RAL colour

Additional information

– additional bends increase strength and protect cables from damage during laying

– to connect 2 trays, use 10 sets of SGKFM6x12 or SGFM6x12 bolts

– drainage and cable fixing holes every 500 mm

Note
Integrated couplers. Assembly without additional couplers.

Product versions

Add

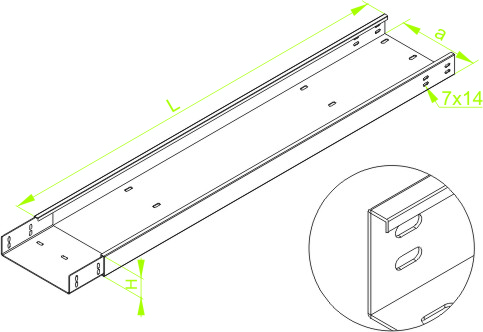

	Symbol	Width a (mm)	Length L (mm)	Weight (1m) (kg)	Catalogue number	Quantity in box (pcs. / m.)	Effective section
100 mm 4800 mm
	KZLWP100H50/3	100	3 000 mm	3.47 kg	355710	6 / 18 pcs. / m.	4,800	Add
200 mm 9800 mm
	KZLWP200H50/3	200	3 000 mm	4.81 kg	355720	4 / 12 pcs. / m.	9,800	Add
300 mm 14800 mm
	KZLWP300H50/3	300	3 000 mm	6.25 kg	355730	4 / 12 pcs. / m.	14,800	Add
400 mm 19800 mm
	KZLWP400H50/3	400	3 000 mm	7.68 kg	355740	2 / 6 pcs. / m.	19,800	Add
500 mm 24800 mm
	KZLWP500H50/3	500	3 000 mm	9.22 kg	355750	2 / 6 pcs. / m.	24,800	Add
600 mm 29800 mm
	KZLWP600H50/3	600	3 000 mm	10.66 kg	355760	2 / 6 pcs. / m.	29,800	Add
