LCWCZ... Cross-over Connector

3.0 Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Information

Building free standing structures based on channels with the width of 50, 80 and 100 mm.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour



Additional information

– quick way to form spatial structures from channels

– cut-outs that allow channels to be mounted "to the face" or through

– can be bolted with standard bolts on each side of the channel

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS

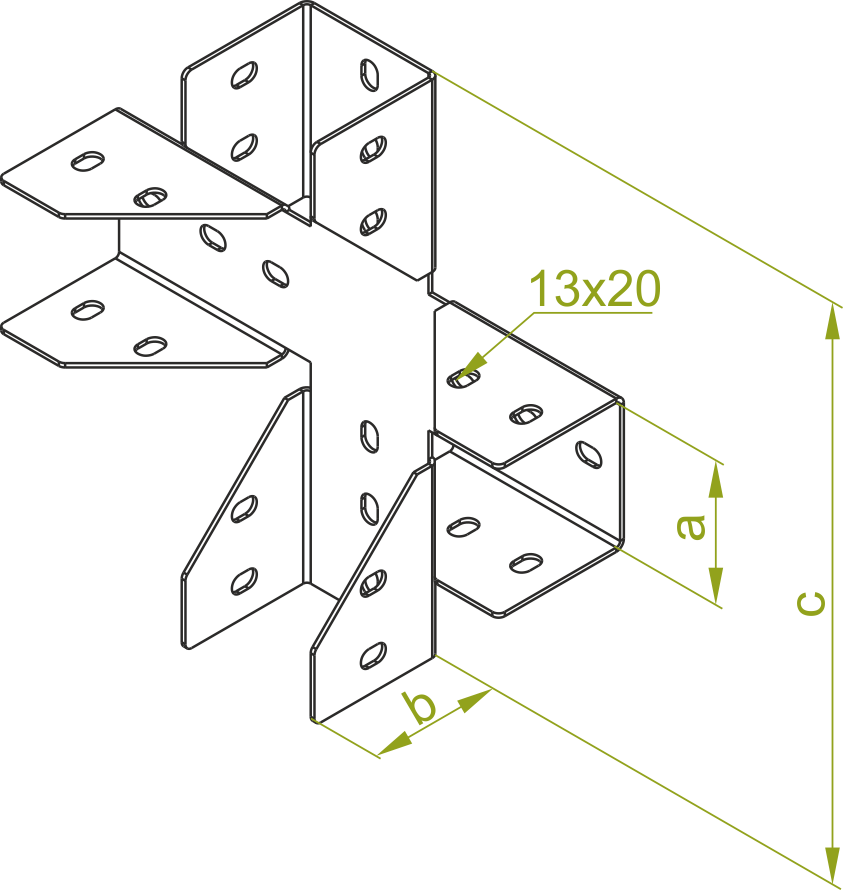

Symbol Size a (mm) Size b (mm) Dimensions c (mm) Weight 1 pc. (kg) Catalogue number Quantity (pcs.)
LCWCZ50
Cable Management Solutions – BAKS
52
Cable Management Solutions – BAKS
50
Cable Management Solutions – BAKS
350
Cable Management Solutions – BAKS
1.72
Cable Management Solutions – BAKS
665006
Cable Management Solutions – BAKS
10
Add
LCWCZ80
Cable Management Solutions – BAKS
82
Cable Management Solutions – BAKS
80
Cable Management Solutions – BAKS
380
Cable Management Solutions – BAKS
2.73
Cable Management Solutions – BAKS
668006
Cable Management Solutions – BAKS
5
Add
LCWCZ100
Cable Management Solutions – BAKS
102
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
3.33
Cable Management Solutions – BAKS
661006
Cable Management Solutions – BAKS
5
