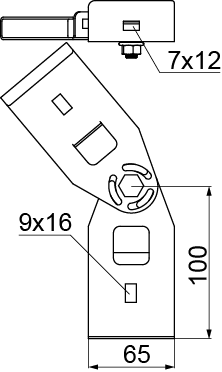

LDDTH45N Articulated Connector - Attachable

3.0 Cable Management Solutions – BAKS
Information

Connecting elements of a cable route routed at different angles. Angle adjustment from 0-90°. Ability to form a two-level route.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

– use 2 sets of SGKM8x14 or SGM8x14 bolts for mounting when bolting to the side of the ladder board

– option E90 for a sheet thickness of 2 mm

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Catalogue number Weight 1 pc. (kg) Quantity (pcs.)
LDDTH45N
Cable Management Solutions – BAKS
441202
Cable Management Solutions – BAKS
0.40
Cable Management Solutions – BAKS
10
Add
