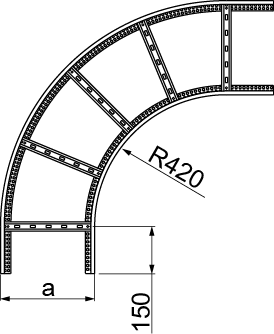

LDP...H80N 90° Horizontal Bend

1.5
Information

Changing the direction of the cable route.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

– use 4 LDPH... or LDCH... connectors and 32 sets of SGKM8x14 or SGM8x14 bolts for mounting

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Add
Symbol Width a (mm) Weight 1 pc. (kg) Catalogue number Quantity (pcs.)
Cable Management Solutions – BAKS
100 mm
Cable Management Solutions – BAKS
mm
LDP100H80N
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
3.29
Cable Management Solutions – BAKS
496210
Cable Management Solutions – BAKS
1 		Add
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
mm
LDP200H80N
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
3.87
Cable Management Solutions – BAKS
496220
Cable Management Solutions – BAKS
1 		Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
mm
LDP300H80N
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
4.48
Cable Management Solutions – BAKS
496230
Cable Management Solutions – BAKS
1 		Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
mm
LDP400H80N
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
5.08
Cable Management Solutions – BAKS
496240
Cable Management Solutions – BAKS
1 		Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
mm
LDP500H80N
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
5.68
Cable Management Solutions – BAKS
496250
Cable Management Solutions – BAKS
1 		Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
mm
LDP600H80N
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
6.27
Cable Management Solutions – BAKS
496260
Cable Management Solutions – BAKS
1 		Add
