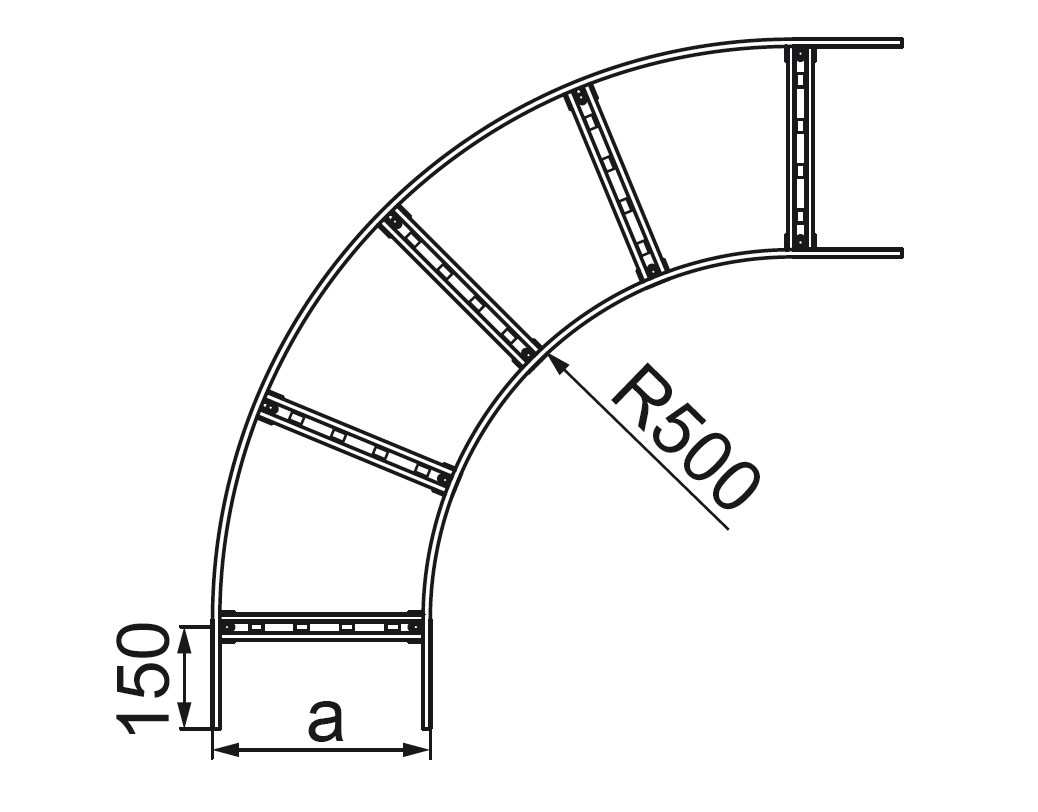

LDSC...H200 90° Horizontal Bend

2.0
Information

Changing the direction of the cable route

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

– for large orders, it is possible to make fittings of any radius

– to connect the fitting to the ladder, use 4 LSSU... fittings connectors and 32 sets of SGKM8x16 bolts

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Width a (mm) Weight 1 pc. (kg) Catalogue number Quantity (pcs.)
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
mm
LDSC200H200
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
9.79
Cable Management Solutions – BAKS
434122
Cable Management Solutions – BAKS
1
Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
mm
LDSC300H200
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
10.80
Cable Management Solutions – BAKS
434132
Cable Management Solutions – BAKS
1
Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
mm
LDSC400H200
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
11.85
Cable Management Solutions – BAKS
434142
Cable Management Solutions – BAKS
1
Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
mm
LDSC500H200
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
12.96
Cable Management Solutions – BAKS
434152
Cable Management Solutions – BAKS
1
Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
mm
LDSC600H200
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
14.65
Cable Management Solutions – BAKS
434162
Cable Management Solutions – BAKS
1
Add
