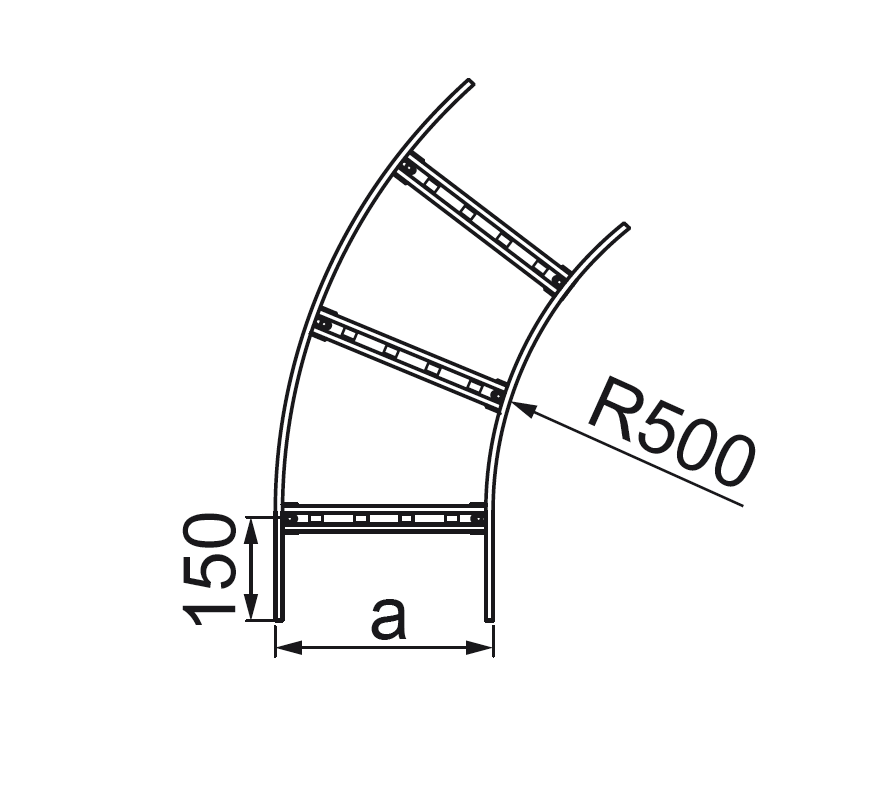

LDSMC...H200 45° Horizontal Bend

2.0
Information

Changing the direction of the cable route

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

– for large orders, it is possible to make fittings of any radius

– to connect the fitting to the ladder, use 4 LSSU... fittings connectors and 32 sets of SGKM8x16 bolts

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Width a (mm) Weight 1 pc. (kg) Catalogue number Quantity (pcs.)
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
mm
LDSMC200H200
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
6.45
Cable Management Solutions – BAKS
435522
Cable Management Solutions – BAKS
2
Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
mm
LDSMC300H200
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
7.11
Cable Management Solutions – BAKS
435532
Cable Management Solutions – BAKS
2
Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
mm
LDSMC400H200
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
7.93
Cable Management Solutions – BAKS
435542
Cable Management Solutions – BAKS
2
Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
mm
LDSMC500H200
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
8.78
Cable Management Solutions – BAKS
435552
Cable Management Solutions – BAKS
2
Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
mm
LDSMC600H200
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
9.64
Cable Management Solutions – BAKS
435562
Cable Management Solutions – BAKS
2
Add
