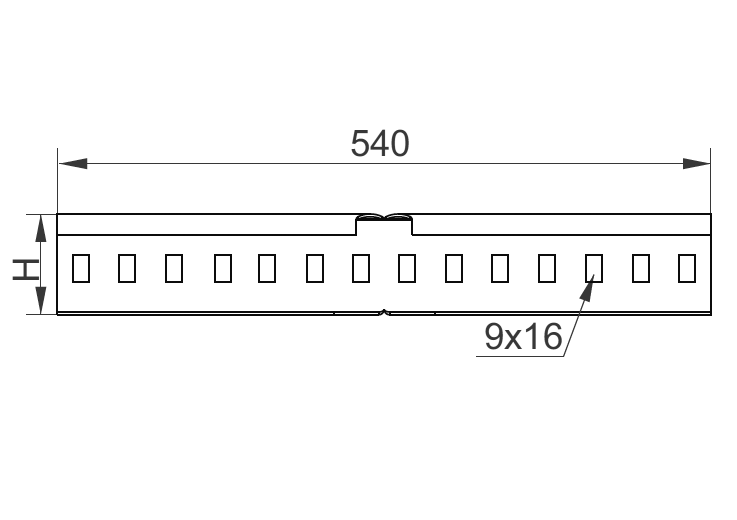

LKDC/LKDOCH60 Angle Connector H60

Cable Management Solutions – BAKS
Information

Joining cable ladder lengths routed
at various angles.

Material

Steel, strip-galv. acc. to the Sendzimir
method to PN-EN 10346:2015-09 (SG)
Available finishes:
F - steel, hot-dip galv.
to PN-EN ISO 1461:2011 (HDG)
E - stainless steel (SS), grade 1.4301 (AISI304)
L - powder coating in a full range of colours (PC)

Additional information

For the assembly use 4 sets śrub SGKM8x14
or SGM8x14
NOTE
New dense perforation applied in Angle Connector – LKDCH45N
guarantees bolted connection of two cable ladder lengths crossed
at any area, either at an angle or as a straight connection - no
additional hole-drilling necessary

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Catalogue number Height H (mm) Weight 1 pc. (kg) Quantity (pcs.)
LKDC/LKDOCH60
Cable Management Solutions – BAKS
461101
Cable Management Solutions – BAKS
65
Cable Management Solutions – BAKS
0.58
Cable Management Solutions – BAKS
20
Add
Examples
