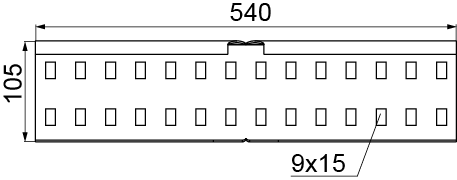

LKDCH100N Angle Connector H100

Information

Joining cable ladder lengths routed
at various angles.

Material

Steel, strip-galv. acc. to the Sendzimir
method to PN-EN 10346:2015-09 (SG)
Available finishes:
F - steel, hot-dip galv.
to PN-EN ISO 1461:2011 (HDG)
E - stainless steel (SS), grade 1.4301 (AISI304)
L - powder coating in a full range of colours (PC)

Additional information

For the assembly use 8 sets of Screw SGKM8x14
or SGM8x14
NOTE
New dense perforation applied in Angle Connector – LKDCH80N
guarantees bolted connection of two, cable ladder lengths crossed
at any area either at an angle, or as a straight connection -
no additional hole-drilling necessary

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Catalogue number Height H (mm) Weight 1 pc. (kg) Quantity (pcs.)
LKDCH100N
Cable Management Solutions – BAKS
411101
Cable Management Solutions – BAKS
105
Cable Management Solutions – BAKS
0.65
Cable Management Solutions – BAKS
20
