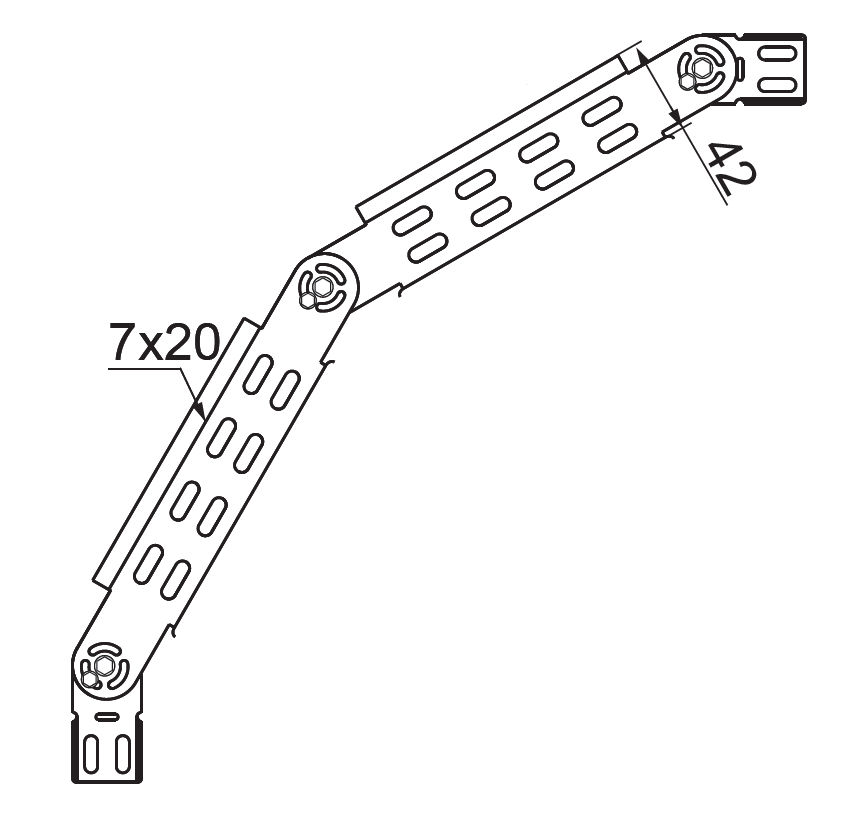

LLL...H42 Adjustable Vertical Bend

0.7 Cable Management Solutions – BAKS
Information

Diversions in cable routing.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

For the assembly use Screw Sets SGKM6x10 or SGM6x10
Adjustable Vertical
Bend is delivered fully assembled together with: 2 Adjustable Vertical Bend
Elements 4 parts of the 2-part Angle Connector item, 6 sets of screws

Note
Integrated couplers. Assembly without additional couplers.
Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Catalogue number Size a (mm) Weight 1 pc. (kg) Quantity (pcs.)
LLL50H42
Cable Management Solutions – BAKS
143105
Cable Management Solutions – BAKS
50
Cable Management Solutions – BAKS
0.46
Cable Management Solutions – BAKS
1
Add
LLL100H42
Cable Management Solutions – BAKS
143110
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
0.58
Cable Management Solutions – BAKS
1
Add
LLL150H42
Cable Management Solutions – BAKS
143115
Cable Management Solutions – BAKS
150
Cable Management Solutions – BAKS
0.68
Cable Management Solutions – BAKS
1
Add
LLL200H42
Cable Management Solutions – BAKS
143120
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
0.84
Cable Management Solutions – BAKS
1
Add
LLL300H42
Cable Management Solutions – BAKS
143130
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
1.08
Cable Management Solutions – BAKS
1
Add
