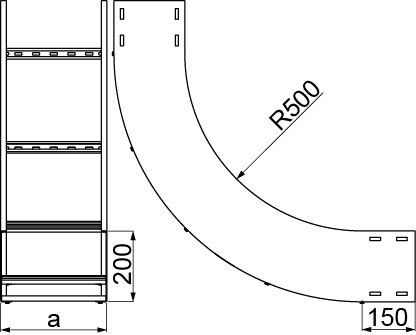

LWDSM...H200 90° Vertical Bend - Internal

2.5
Information

Changing the direction of the cable route.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

– for large orders, it is possible to make fittings of any radius

– to connect the fitting to the ladder it is necessary to use LSSU... fitting connectors and SGKM8x16 bolts

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Width a (mm) Weight 1 pc. (kg) Catalogue number Quantity (pcs.)
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
mm
LWDSM200H200
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
14.75
Cable Management Solutions – BAKS
434423
Cable Management Solutions – BAKS
1
Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
mm
LWDSM300H200
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
15.26
Cable Management Solutions – BAKS
434433
Cable Management Solutions – BAKS
1
Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
mm
LWDSM400H200
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
15.58
Cable Management Solutions – BAKS
434443
Cable Management Solutions – BAKS
1
Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
mm
LWDSM500H200
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
15.96
Cable Management Solutions – BAKS
434453
Cable Management Solutions – BAKS
1
Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
mm
LWDSM600H200
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
16.35
Cable Management Solutions – BAKS
434463
Cable Management Solutions – BAKS
1
Add
