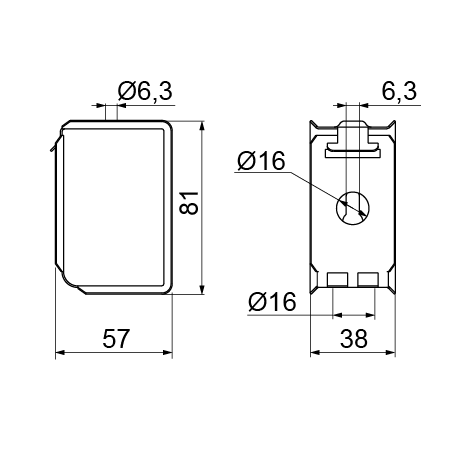

OZS/OZSO Cable Hanger

1.2 Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Information

Suspending cable cables to the ceiling and wall.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

FP - galvanised according to the zinc flake method PN-EN ISO 10683:2018-11

E - stainless steel

L - painting in standard RAL colour

Additional information

Safe working load: see Safe Loads Table
Standard spacing of supports: 0.3m
Upgraded standard of supports – 0.6m

For the installation use the following bolt options:
- SROM6x30
- SRBOM6x30 + NSM6 + PP6
- KWBO6x35 or KWBO6x40
- GSO6x40
- KSKOM6
- KKG5
- MKR6x32
- PSROM6x45 or PSROM6x50





Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Catalogue number Obciążenie maksymalne F max (kN/m) Weight 1 pc. (kg) Quantity (pcs.)
OZS/OZSO
Cable Management Solutions – BAKS
752500
Cable Management Solutions – BAKS
0.02
Cable Management Solutions – BAKS
0.12
Cable Management Solutions – BAKS
100
