Information

Laying the ballast and ballasting the system

Material

S250GD steel in:
Magnelis®, MagiZinc®, PosMAC coating

Additional information

- overall dimensions adapted to the most common concrete

block sizes

- tool-free base assembly

- thanks to the stable click connection, the assembly time is

significantly installation time is significantly reduced

- made of Magnelis® , MagiZinc® coated material, PosMAC with

very high corrosion resistance

Additional bolting is possible SGKFM10x20PV

Attention!

Double-sided tape will be available in Q4 of this year, dedicated

to sticking to products made of steel with the following coatings:

Magnelis®, MagiZinc®, PosMAC.

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS

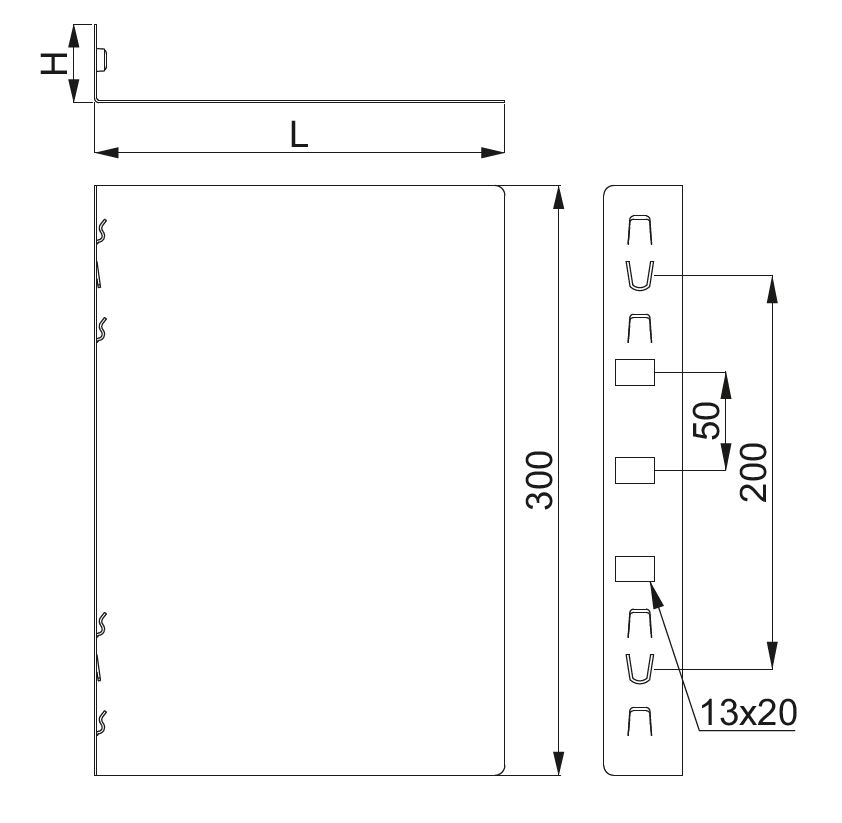

Symbol Catalogue number Height H (mm) Length L (mm) Weight 1 pc. (kg) Quantity (pcs.)
PBK40MC
Cable Management Solutions – BAKS
858440
Cable Management Solutions – BAKS
40
Cable Management Solutions – BAKS
240 mm
Cable Management Solutions – BAKS
0.78
Cable Management Solutions – BAKS
10
Add
PBKD40MC
Cable Management Solutions – BAKS
858441
Cable Management Solutions – BAKS
40
Cable Management Solutions – BAKS
478,5 mm
Cable Management Solutions – BAKS
1.45
Cable Management Solutions – BAKS
10
Add
PBK50MC
Cable Management Solutions – BAKS
858450
Cable Management Solutions – BAKS
50
Cable Management Solutions – BAKS
240 mm
Cable Management Solutions – BAKS
0.81
Cable Management Solutions – BAKS
10
Add
PBKD50MC
Cable Management Solutions – BAKS
858451
Cable Management Solutions – BAKS
50
Cable Management Solutions – BAKS
478,5 mm
Cable Management Solutions – BAKS
1.48
Cable Management Solutions – BAKS
10
Add
