1.5

Information

Protection of cables from dust accumulation and mechanical damage and weathering (e.g. UV radiation).

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

– option E for thickness ≥ 1.2 mm - no embossing for locking the cover

– recommended to use additional clips

Product versions

Add

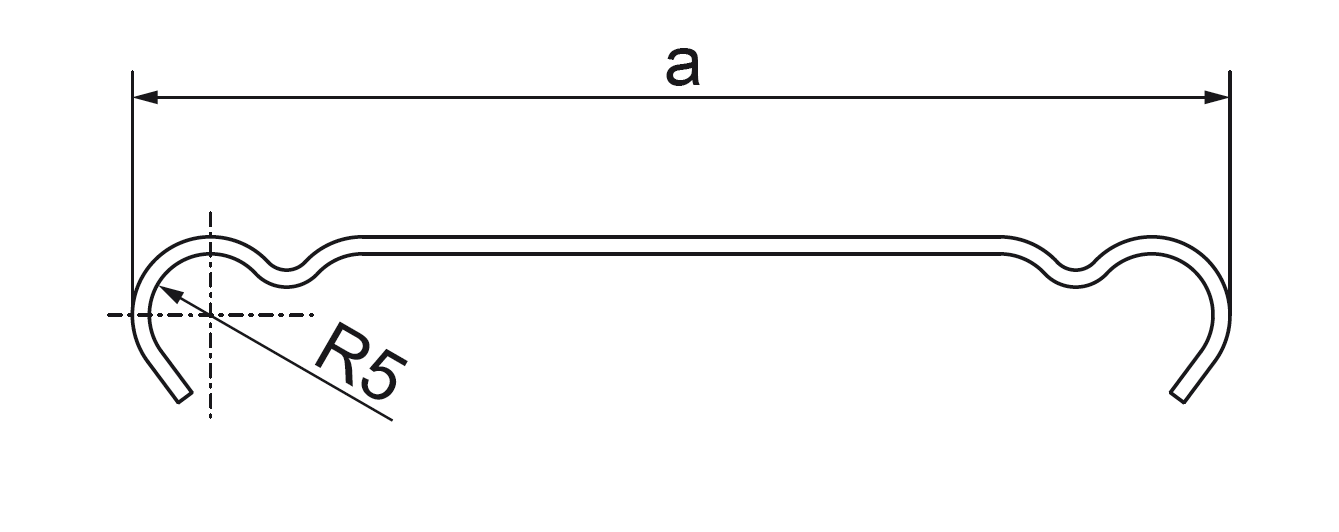

	Symbol	Width a (mm)	Length L (mm)	Weight (1m) (kg)	Catalogue number	Quantity in box (pcs. / m.)
50 mm mm
	PKP50/3	50	3 000 mm	0.96 kg	101205	6 / 18 pcs. / m.	Add
100 mm mm
	PKP100/3	100	3 000 mm	1.56 kg	101210	6 / 18 pcs. / m.	Add
150 mm mm
	PKP150/3	150	3 000 mm	2.16 kg	101215	6 / 18 pcs. / m.	Add
200 mm mm
	PKP200/3	200	3 000 mm	2.76 kg	101220	6 / 18 pcs. / m.	Add
300 mm mm
	PKP300/3	300	3 000 mm	3.96 kg	101230	6 / 18 pcs. / m.	Add
400 mm mm
	PKP400/3	400	3 000 mm	5.16 kg	101040	4 / 12 pcs. / m.	Add
500 mm mm
	PKP500/3	500	3 000 mm	6.36 kg	101050	4 / 12 pcs. / m.	Add
600 mm mm
	PKP600/3	600	3 000 mm	7.56 kg	101060	2 / 6 pcs. / m.	Add
