POKZA...W Galvanized box with blockade of opening and aluminum cover for the underfloor trunking

0.0 Cable Management Solutions – BAKS
Information

Complete floor box ready for mounting in engineered floors, raised floors and concrete screeds. The box with galvanised and aluminium components is ready for use in dry environments.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

AL - aluminium

Additional information

– notches on each side of the metal casing are used, after breaking out, for mounting trunking sections. Ø8 mm holes in the bottom of the housing allow the box to be mounted to the substrate.

– box ready for direct mounting electrical accessories Module 45

– depth of cover fill: W - Carpet, h = 5 mm G - Gres tile, h = 12 mm K - Stone, h = 23 mm

– list of maximum trunking widths to fit the boxes:

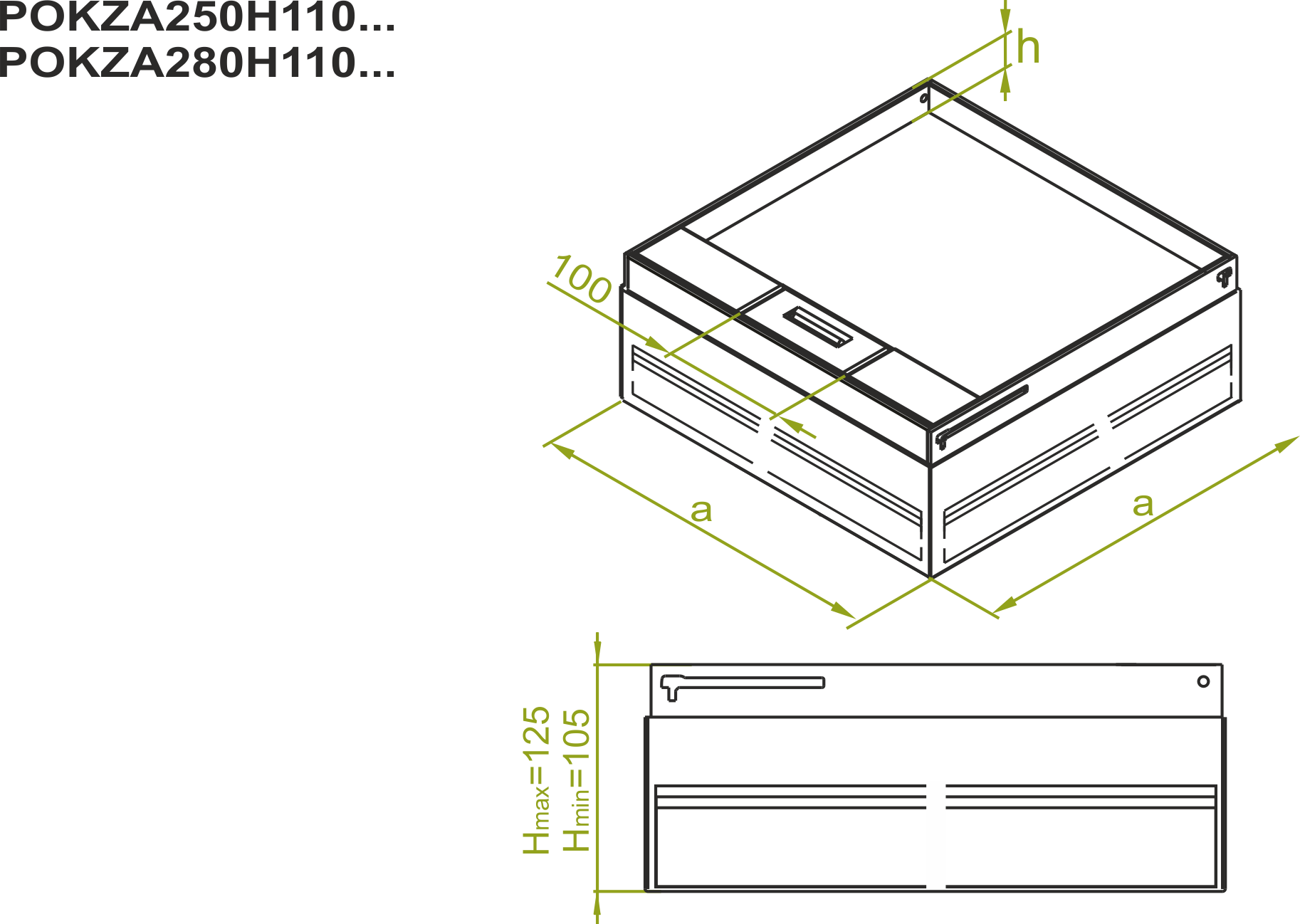

– POKZA180H110..., POKZAS180H110... max. trunking width: 175 mm POKZA205H110..., POKZAS205H110... max. trunking width: 190 mm POKZA250H110... max. trunking width: 240 mm POKZA280H110... max. trunking width: 250 mm

– universal cover allows mounting in carpet, gres tiles and stone

– quick and intuitive mounting box

– various material finishes (aluminium and stainless steel)

– adjustable box height

– breakout holes for trunking with the height of H28, H38 and H48

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Catalogue number Weight 1 pc. (kg) Size a (mm) Quantity (pcs.) filling thickness h type of input/qty maximum quantity of modules 45 in the junction box
POKZA180H110W
Cable Management Solutions – BAKS
231830
Cable Management Solutions – BAKS
1.90
Cable Management Solutions – BAKS
180
Cable Management Solutions – BAKS
1
Cable Management Solutions – BAKS
5
Cable Management Solutions – BAKS
prosty/2
Cable Management Solutions – BAKS
5(2,5*2)
Add
POKZAS180H110W
Cable Management Solutions – BAKS
231832
Cable Management Solutions – BAKS
1.90
Cable Management Solutions – BAKS
180
Cable Management Solutions – BAKS
1
Cable Management Solutions – BAKS
5
Cable Management Solutions – BAKS
skośny/2
Cable Management Solutions – BAKS
5(2,5*2)
Add
POKZA205H110W
Cable Management Solutions – BAKS
232030
Cable Management Solutions – BAKS
2.49
Cable Management Solutions – BAKS
205
Cable Management Solutions – BAKS
1
Cable Management Solutions – BAKS
5
Cable Management Solutions – BAKS
prosty/2
Cable Management Solutions – BAKS
6
Add
POKZAS205H110W
Cable Management Solutions – BAKS
232032
Cable Management Solutions – BAKS
2.49
Cable Management Solutions – BAKS
205
Cable Management Solutions – BAKS
1
Cable Management Solutions – BAKS
5
Cable Management Solutions – BAKS
skośny/2
Cable Management Solutions – BAKS
6
Add
POKZA250H110W
Cable Management Solutions – BAKS
232530
Cable Management Solutions – BAKS
3.46
Cable Management Solutions – BAKS
250
Cable Management Solutions – BAKS
1
Cable Management Solutions – BAKS
5
Cable Management Solutions – BAKS
skośny/2
Cable Management Solutions – BAKS
8
Add
POKZA280H110W
Cable Management Solutions – BAKS
232830
Cable Management Solutions – BAKS
4.88
Cable Management Solutions – BAKS
280
Cable Management Solutions – BAKS
1
Cable Management Solutions – BAKS
5
Cable Management Solutions – BAKS
skośny/2
Cable Management Solutions – BAKS
9(4,5*2)
Add
