RDSP...H45N Straight Reducer

1.5 Cable Management Solutions – BAKS
Information

Reducing/extending widths of cable runs

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

For the assembly use 4 Straight Connector LDCH...
and 16 sets of Screw SGKM8x14 or SGM8x14

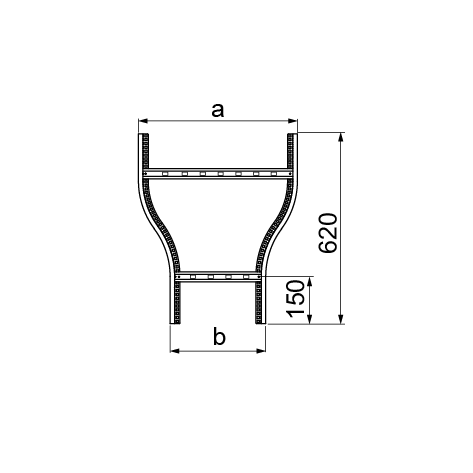

In case of special orders specify dimensions a and b.

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Width a (mm) Size b (mm) Weight 1 pc. (kg) Catalogue number Quantity (pcs.)
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
mm
RDSP200/100H45N
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
1.34
Cable Management Solutions – BAKS
447820
Cable Management Solutions – BAKS
2
Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
mm
RDSP300/200H45N
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
1.50
Cable Management Solutions – BAKS
447830
Cable Management Solutions – BAKS
2
Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
mm
RDSP400/300H45N
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
1.68
Cable Management Solutions – BAKS
447840
Cable Management Solutions – BAKS
2
Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
mm
RDSP500/400H45N
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
1.86
Cable Management Solutions – BAKS
447850
Cable Management Solutions – BAKS
2
Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
mm
RDSP600/500H45N
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
2.02
Cable Management Solutions – BAKS
447860
Cable Management Solutions – BAKS
2
Add
