RKSSP...H120 Straight Reducer

1.5
Information

Changing the width of the cable route.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

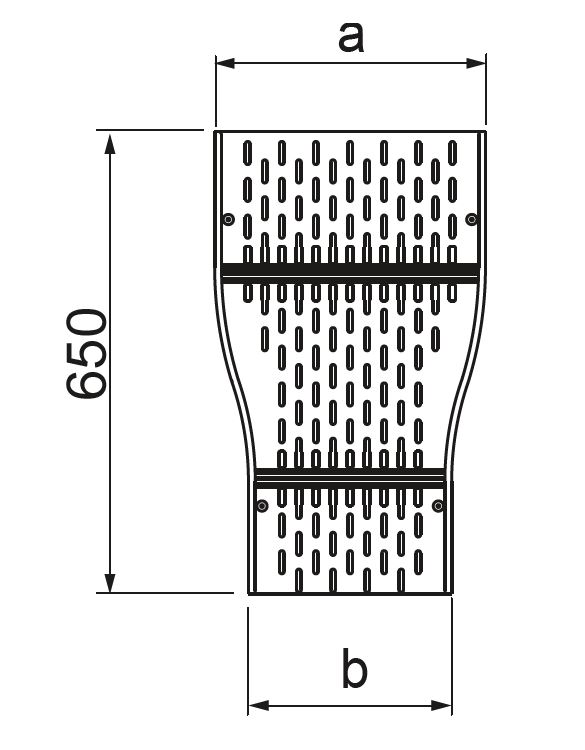

– for non-standard orders specify dimension a and b

– to connect the fitting to the tray it is necessary to use LSSU... fitting connectors and SGKM8x16 bolts

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Catalogue number Size a (mm) Size b (mm) Weight 1 pc. (kg) Quantity (pcs.)
RKSSP300/200H120
Cable Management Solutions – BAKS
221621
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
3.91
Cable Management Solutions – BAKS
1
Add
RKSSP400/300H120
Cable Management Solutions – BAKS
221631
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
4.41
Cable Management Solutions – BAKS
1
Add
RKSSP500/400H120
Cable Management Solutions – BAKS
221641
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
4.91
Cable Management Solutions – BAKS
1
Add
RKSSP600/500H120
Cable Management Solutions – BAKS
221651
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
5.41
Cable Management Solutions – BAKS
1
Add
