Fixing PV panels to trapezoidal metal sheet,
e.g. DS-V6aN system
Material
Aluminium (EN AW-6063)
Available finishes:
L- powder coating RAL9005
Additional information
- rail height 70 mm ensures quick Installation and good
ventilation under PV panels
- special section to increase strength of the element
- the contact surfaces between the rail and the roof equipped
with sealing rubber in SMA70/033

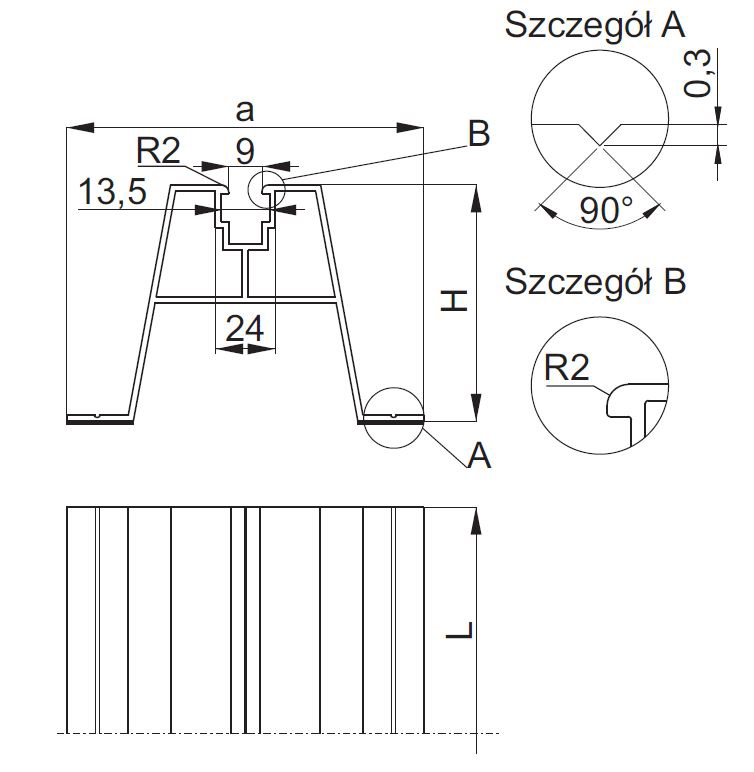

- special groove (detail A in the picture) allows for easy
positioning of the screws when screwing in
For the assembly use min. 4 x SMDP6x25E Screws
