TDP...H45N Horizontal Tee

1.5 Cable Management Solutions – BAKS
Information

Branching out cable runs.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

For the assembly use 6 Straight Connectors LDCH... and 24 sets of Screw SGKM8x14 or SGM8x14

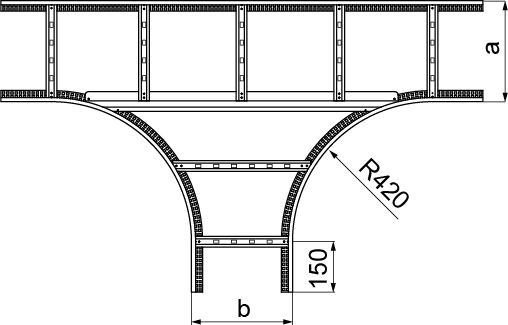

In case of special orders specify dimensions a and b.

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Catalogue number Width a (mm) Weight 1 pc. (kg) Quantity (pcs.)
Cable Management Solutions – BAKS
100 mm
Cable Management Solutions – BAKS
mm
TDP100H45N
Cable Management Solutions – BAKS
447210
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
4.18
Cable Management Solutions – BAKS
2
Add
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
mm
TDP200H45N
Cable Management Solutions – BAKS
447220
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
4.89
Cable Management Solutions – BAKS
2
Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
mm
TDP300H45N
Cable Management Solutions – BAKS
447230
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
5.61
Cable Management Solutions – BAKS
2
Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
mm
TDP400H45N
Cable Management Solutions – BAKS
447240
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
6.48
Cable Management Solutions – BAKS
2
Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
mm
TDP500H45N
Cable Management Solutions – BAKS
447250
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
7.14
Cable Management Solutions – BAKS
2
Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
mm
TDP600H45N
Cable Management Solutions – BAKS
447260
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
7.78
Cable Management Solutions – BAKS
2
Add
