TDSC...H110 Horizontal Tee

2.0
Information

Cable route branching.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

– for large orders, it is possible to make fittings of any radius

– to connect the fitting to the ladder it is necessary to use LSSU... fitting connectors and SGKM8x16 bolts

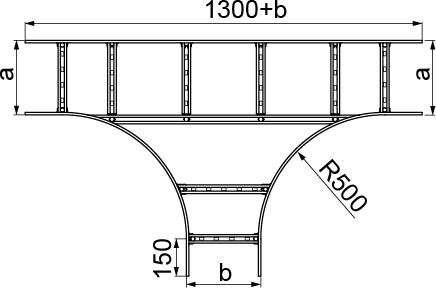

– for non-standard orders specify dimension a and b (if a=400, b=600 the ordered fitting should have the designation TDSC400/600/400H...)



Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Catalogue number Size a=b (mm) Weight 1 pc. (kg) Quantity (pcs.)
TDSC200H110
Cable Management Solutions – BAKS
412622
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
9.51
Cable Management Solutions – BAKS
1
Add
TDSC300H110
Cable Management Solutions – BAKS
412632
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
10.64
Cable Management Solutions – BAKS
1
Add
TDSC400H110
Cable Management Solutions – BAKS
412642
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
11.78
Cable Management Solutions – BAKS
1
Add
TDSC500H110
Cable Management Solutions – BAKS
412652
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
12.97
Cable Management Solutions – BAKS
1
Add
TDSC600H110
Cable Management Solutions – BAKS
412662
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
14.04
Cable Management Solutions – BAKS
1
Add
